DAISY-12 protoboard to create custom Daisy modules

40x40 mm prototyping board with Daisy IDC male connector and small soldering area to create Daisy custom prototype

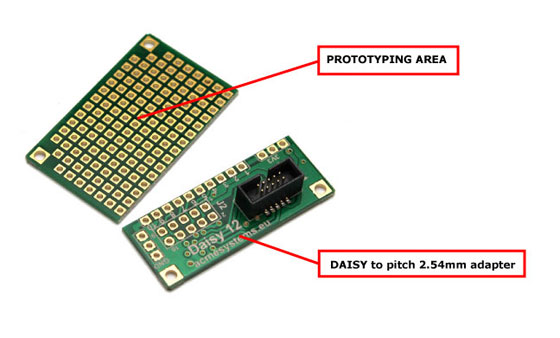

Thanks to a lite scoring on the PCB it is possible, with a gently pressure, to break the board two parts and use them for new prototyping solutions.

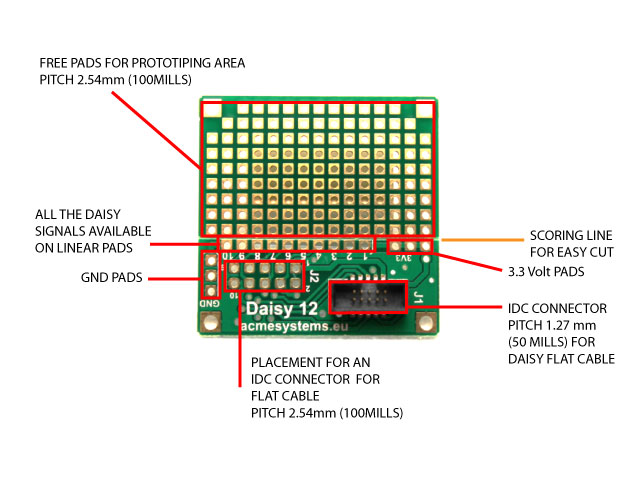

Sections:

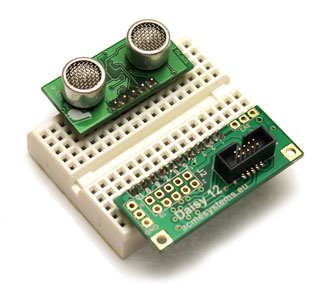

Example of use:

Schematics

DAISY-12
EUR 3.00


Prototyping board

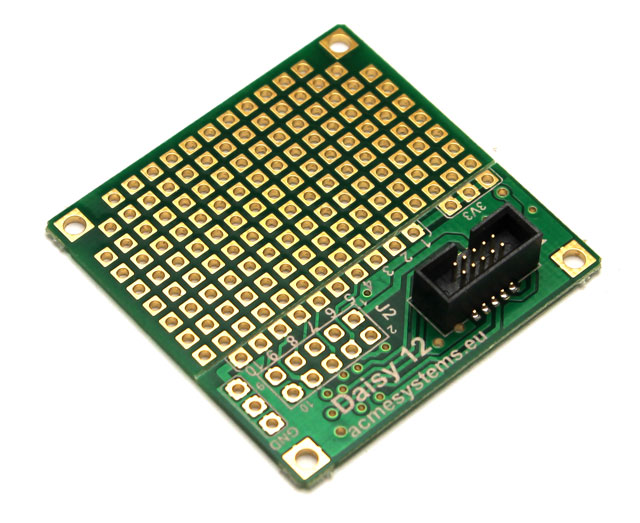

DAISY-12 is a 40x40 mm prototyping board with daisy IDC connector mounted and small soldering area to create your custom daisy add-on module.

Note: the daisy flat cable to wire this board is not included. Don't forget to buy it (code FLAT-20CM)
