USB to 3V TTL serial cable for debug port

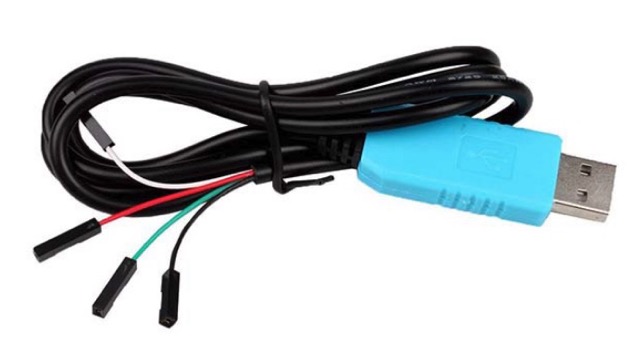

USB to serial converter with separated pin plugs compatible with all the Acme Systems board debug ports

Pinout

  • Red plug: 5V @ 500mA power out
  • White plug: RX line (input) at 3.3 volt
  • Green plug: TX line (output) at 3.3 volt
  • Black plug: Ground

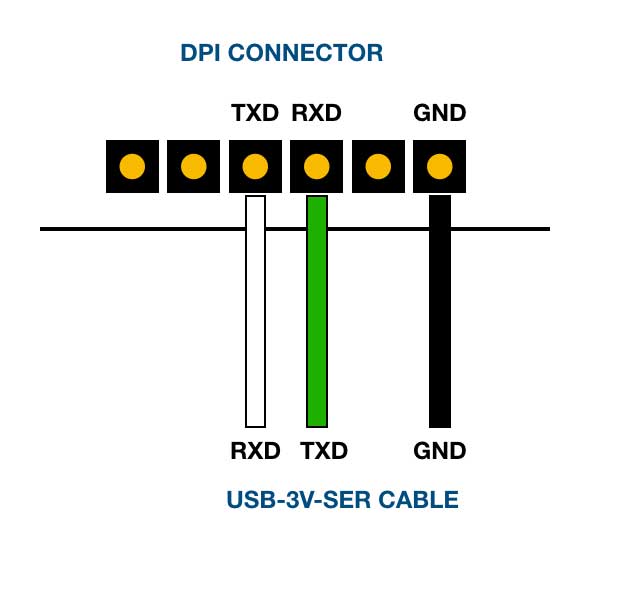

How to plug this cable on a DPI port
