Acqua A5 wirings

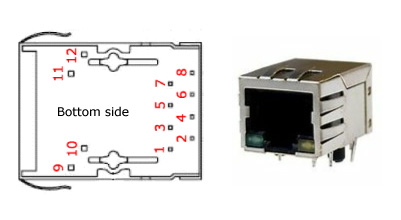

Ethernel 10/100MBit
| Eth pin # | Acqua pin # | Function |
|---|---|---|
| 1 | J1.1 | ETH_TXP |
| 2 | J1.3 | ETH_TXN |
| 3 | J1.4 | ETH_RXP |
| 4 | J1.6 | ETH_3V3 |
| 5 | J1.6 | ETH_3V3 |
| 6 | J1.2 | ETH_RXN |
| 7 | ||
| 8 | ||
| 9 | J1.7 | ETH_LED1 (link,green) |
| 10 | J1.5 | ETH_GND |
| 11 | J1.5 | ETH_GND |
| 12 | J1.8 | ETH_LED2 (traffic, yellow) |
LCD TFT
| LCD Pin # | Symbol | Acqua Pin # | Function |
|---|---|---|---|
| 1 | VLED- | GND 23V | |
| 2 | VLED+ | VCC 23V | |
| 3 | GND | GND | |
| 4 | VDD | 3.3V | |
| 5 | R0 | J1.26 | LCD DAT16 |
| 6 | R1 | J1.25 | LCD DAT17 |
| 7 | R2 | J1.28 | LCD DAT18 |
| 8 | R3 | J1.27 | LCD DAT19 |
| 9 | R4 | J1.30 | LCD DAT20 |
| 10 | R5 | J1.29 | LCD DAT21 |
| 11 | R6 | J1.32 | LCD DAT22 |
| 12 | R7 | J1.31 | LCD DAT23 |
| 13 | G0 | J1.18 | LCD DAT8 |
| 14 | G1 | J1.17 | LCD DAT9 |
| 15 | G2 | J1.20 | LCD DAT10 |
| 16 | G3 | J1.19 | LCD DAT11 |
| 17 | G4 | J1.22 | LCD DAT12 |
| 18 | G5 | J1.21 | LCD DAT13 |
| 19 | G6 | J1.24 | LCD DAT14 |
| 20 | G7 | J1.23 | LCD DAT15 |
| 21 | B0 | J1.10 | LCD DAT0 |
| 22 | B1 | J1.9 | LCD DAT1 |
| 23 | B2 | J1.12 | LCD DAT2 |
| 24 | B3 | J1.11 | LCD DAT3 |
| 25 | B4 | J1.14 | LCD DAT4 |
| 26 | B5 | J1.13 | LCD DAT5 |
| 27 | B6 | J1.16 | LCD DAT6 |
| 28 | B7 | J1.15 | LCD DAT7 |
| 29 | DGND | GND | |
| 30 | DCLK | J1.36 | LCD PCK |
| 31 | DISP | J1.33 | LCD DISP |
| 32 | HSYNC | J1.35 | LCD HSYNC |
| 33 | VSYNC | J1.38 | LCD VSYNC |
| 34 | DE | J1.37 | LCD DEN |
| 35 | NC | ||
| 36 | GND | GND | |
| 37 | X_R | ||
| 38 | Y_B | ||
| 39 | X_L | ||
| 40 | Y_T |
