SWD In-circuit programming using Atmel ICE
This article illustrates how to use the SWD section od Atmel ICE In-circuit programmer with the Berta H10 board

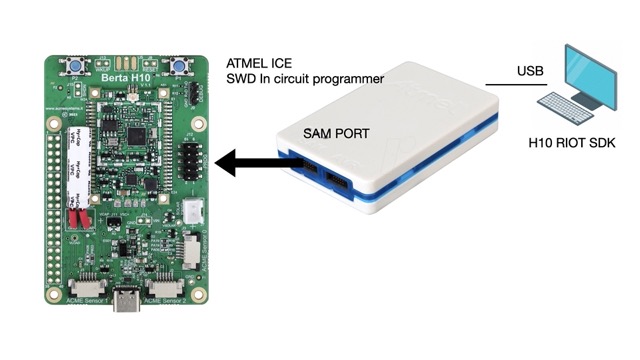

This is the wirings between the Atmel ICE SAM porte and the Barta-H10 J12 PROG port.
| Atmel ICE SAM port pin # | Berta-H10 J12 pin # | Signals |
|---|---|---|
| 1 | 1 | NRST |
| 2 | ||
| 3 | ||
| 4 | ||
| 5 | ||
| 6 | 6 | GND |
| 7 | 7 | SWCLK |
| 8 | ||
| 9 | 9 | SWDIO |
| 10 |
If you intend to BUY an Atmel ICE programmer from the Acme Systems eShop ask for a free Atmel ICE to Berta-H10 adapter.
To transfer a firmware to Berta-H10 type this command:
make flash
...
### Flashing Target ###
Debugger: ATMEL Atmel-ICE CMSIS-DAP J41800042702 1.0 (SJ)
Clock frequency: 16.0 MHz
Target: SAM R34J18B (Rev C)
Verification...
at address 0x48 expected 0x11, read 0x0d
Error: verification failed
Debugger: ATMEL Atmel-ICE CMSIS-DAP J41800042702 1.0 (SJ)
Clock frequency: 16.0 MHz
Target: SAM R34J18B (Rev C)
Programming.......... done.
Verification.......... done.
Done flashing
