SWD In-circuit programming using a STLINK-V2 programmer
This article illustrates how to use the popular and cheap STLINK-V2 In-circuit SWD programmer
with the the H10 module and Berta H10 board

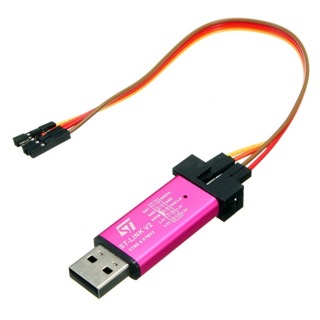

The STLINK V2 is a very cheap Chinese SWD programmer easily available on Internet.

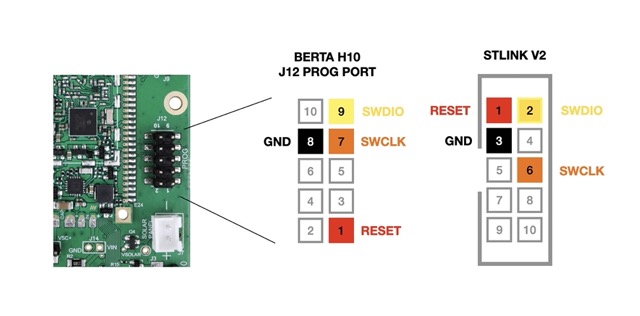

This is the wiring to connect it to the Berta-H10 J2 PROG connector:
| STLINK-V2 pin # | Berta-H10 J12 pin # | Signal name |
|---|---|---|
| 2 | 9 | SWDIO |
| 3 | 8 | GND |
| 6 | 7 | SWCLK |
| 1 | 1 | RESET |
To use the STLINK V2 it is requested to install opencd on the Linux PC where is installed the H10 SDK by typing these commands:
sudo apt update
sudo apt install openocd
to launch the in-circuit type:
make flash PROGRAMMER=openocd OPENOCD_DEBUG_ADAPTER="stlink-dap"
...
### Flashing Target ###
Open On-Chip Debugger 0.11.0
Licensed under GNU GPL v2
For bug reports, read
http://openocd.org/doc/doxygen/bugs.html
dapdirect_swd
Info : STLINK V2J29S7 (API v2) VID:PID 0483:3748
Info : Target voltage: 3.284462
Info : Unable to match requested speed 400 kHz, using 240 kHz
Info : Unable to match requested speed 400 kHz, using 240 kHz
Info : clock speed 240 kHz
Info : stlink_dap_op_connect(connect)
Info : SWD DPIDR 0x0bc11477
Info : at91samd.cpu: hardware has 4 breakpoints, 2 watchpoints
Info : at91samd.cpu: external reset detected
Info : starting gdb server for at91samd.cpu on 0
Info : Listening on port 36017 for gdb connections
TargetName Type Endian TapName State
-- ------------------ ---------- ------ ------------------ ------------
0* at91samd.cpu cortex_m little at91samd.cpu reset
target halted due to debug-request, current mode: Thread
xPSR: 0x21000000 pc: 0x000010bc msp: 0x20000200
Info : SAMD MCU: SAMR34J18 (256KB Flash, 32KB RAM)
auto erase enabled
wrote 49664 bytes from file /home/tanzilli/lora3a-projects/lora3a-boards/examples/sensor-node/bin/lora3a-h10/sensor-node.elf in 6.745703s (7.190 KiB/s)
verified 49484 bytes in 1.075185s (44.945 KiB/s)
shutdown command invoked
Done flashing
