YARM-DEV user application pinout

This is the general purpose pins available for the user applications

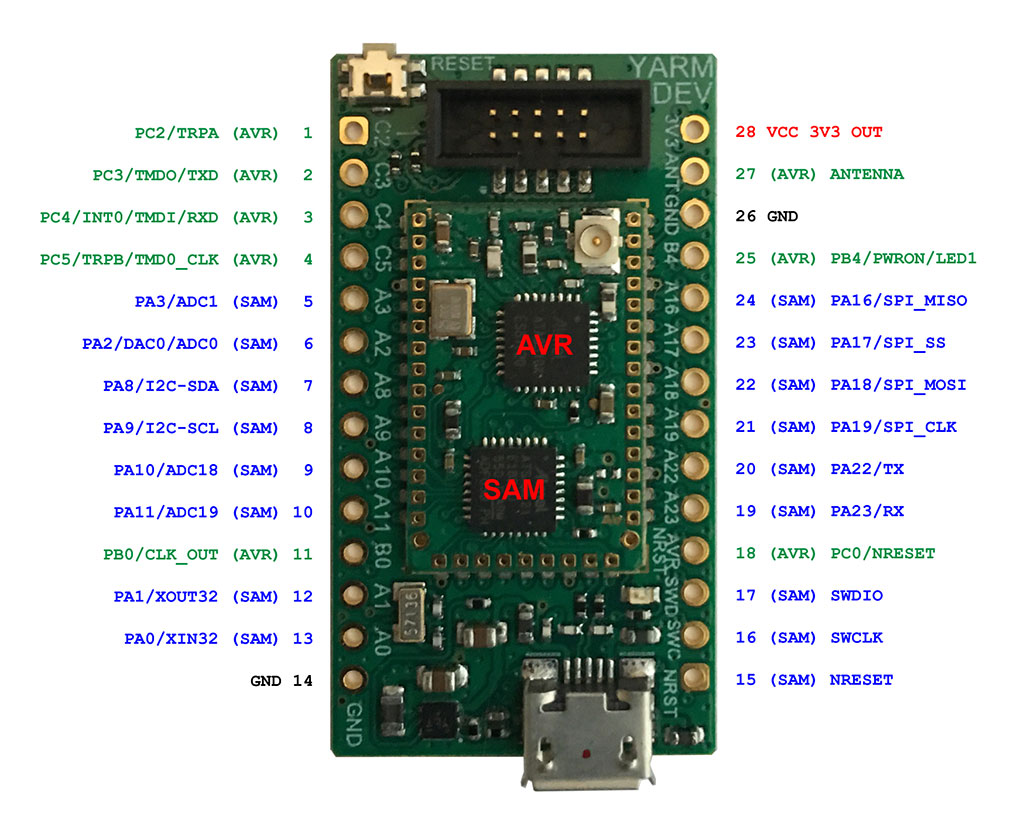

YARM-DEV full pinout

This is the full pinout tha include also the special function pins.
  • The pins in green come directly from the AVR ATA8510 transceiver chip
  • The pins in blue come directly from the SAM L21 main MPU chip

For a full reference abut the pin functionality please read the Atmel datasheets:

Please note that to program the Atmel ATA8510 it is required to sign a NDA with Microchip/Atmel. To use this chip in normal radio application we provide a royalties free closed source binary firmware.
