How to use the KY-040 Rotary encoder

This article illustrates how to use the KY-040 Rotary Encode Module on a CM3-Panel or Raspberry Pi

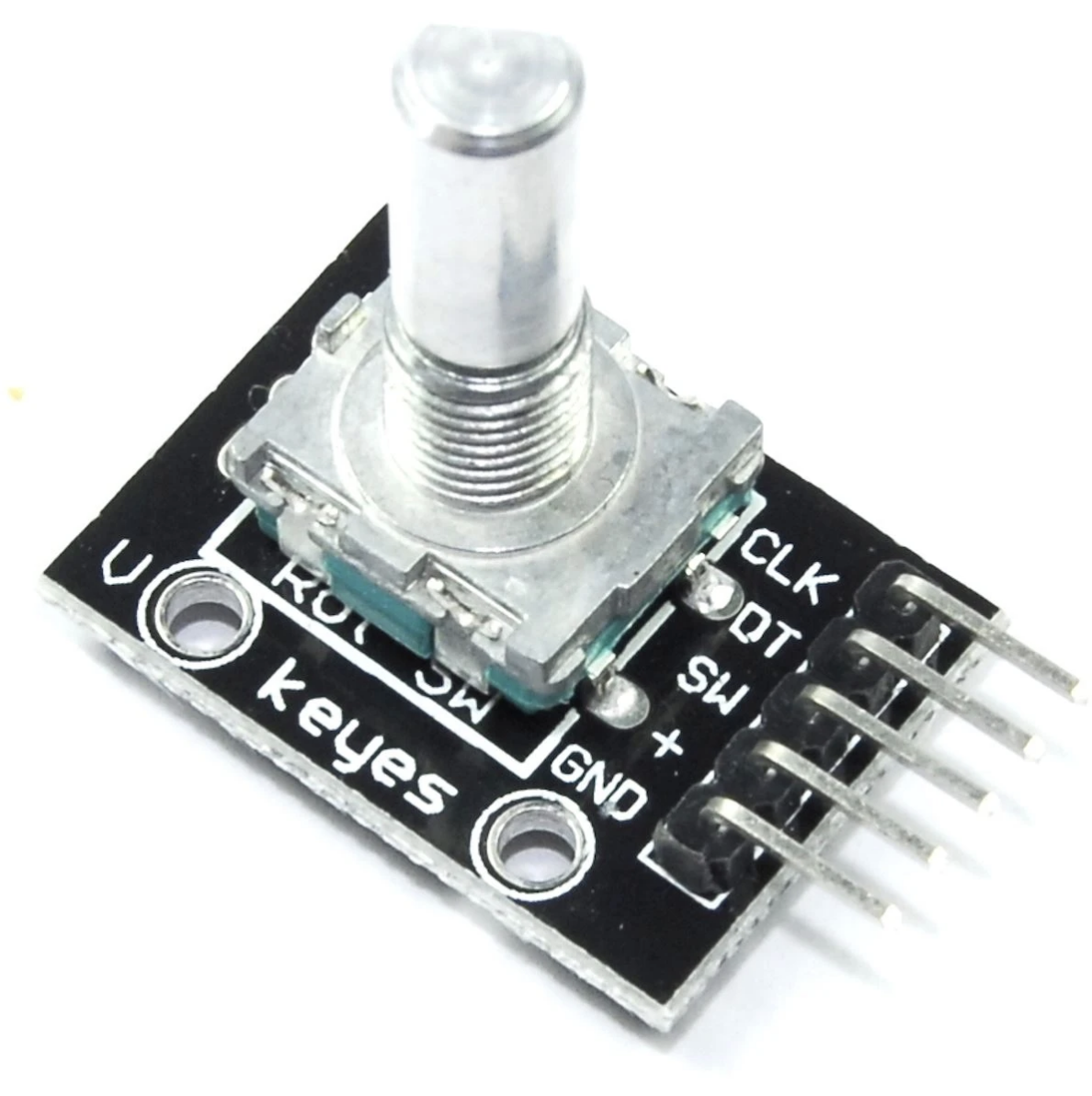

The KY-040 rotary ancoder is a very cheap module useful to simulate a potentiometers or to implements an easy to use human interface.

It is available at very low price on Amazon

and can be wired to a Raspberry Pi using just 3 GPIO

KY040 Pi
CLK GPIO23
DT GPIO24
SW GPIO22
+ 3V3
GND GND

See the KY-040 datasheet for more details

Activate the Linux Kernel Driver

Insert these two lines inside the /boot/config.txt file and reboot to activate the Kernel driver

dtoverlay=rotary-encoder,pin_a=23,pin_b=24,relative_axis=1
dtoverlay=gpio-key,gpio=22,keycode=28,label="ENTER"

after rebooting two new /dev/input/eventX driver will appear

ls /dev/input/event*

To do a quickly test install evtest package:

sudo apt update
sudo apt install evtest

Then check the rotary movements

evtest /dev/input/event4

and the key pressing

evtest /dev/input/event3

Python example

Here is a simple Python simple example. Install evdev library for Python3 (or python 2):

sudo apt update
sudo apt install python3-evdev

Create a file called rotary.py with Python code:

# -*- encoding: utf-8 -*-
from __future__ import print_function

import evdev
import select

devices = [evdev.InputDevice(fn) for fn in evdev.list_devices()]
devices = {dev.fd: dev for dev in devices}

value = 1
print("Value: {0}".format(value))

done = False
while not done:
    r, w, x = select.select(devices, [], [])
    for fd in r:
        for event in devices[fd].read():
            event = evdev.util.categorize(event)
            if isinstance(event, evdev.events.RelEvent):
                value = value + event.event.value
                print("Value: {0}".format(value))
            elif isinstance(event, evdev.events.KeyEvent):
                if event.keycode == "KEY_ENTER" and event.keystate == event.key_up:
                    done = True
                    break

Launch it by typing:

python3 rotary.py

Links

MQTT

This part is still under construction...

sudo apt update
sudo apt install python3-paho-mqtt
