The daisy connectors where to plug this board are:
| Board | Daisy Connector |
|---|---|
| FOXG20 | D2 |
| FOXG20 | D5 |
| TERRA | D11 |
| TERRA | D12 |
On the FOX Board G20 is requested a Daisy-1 adapter.

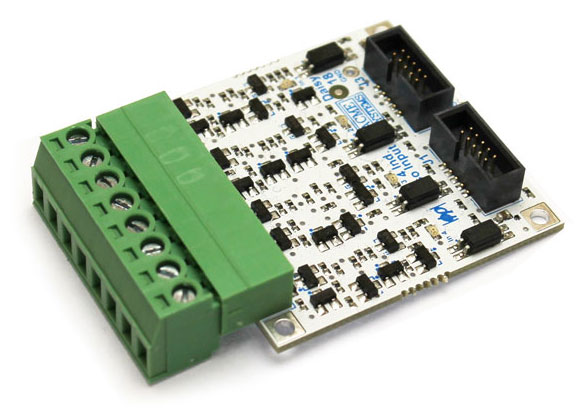

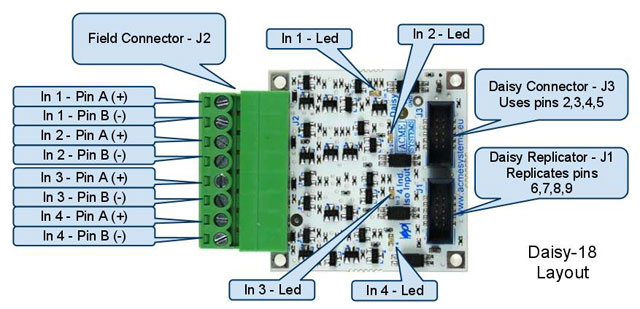

The following picture shows Daisy-18 connectors and monitoring LEDs.

Up to 2 Daisy-18 boards can be connected to the same Daisy-1 connector by means of the Replicator connector J3. So full use of all I/O pins on a single Daisy-1 connector is made. This applies to Daisy-1 connectors: D2, D3, D5 provided all pins are set as GPIO.
Daisy-18 cascading feature is illustrated by the following picture :

The "floating" optoisolated inputs of the Daisy-18 handle the following configurations

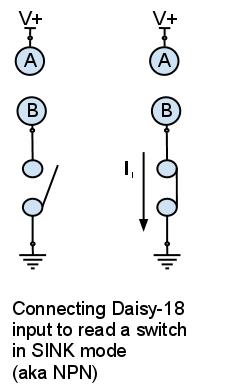

Up to 4 switches can be read in this configuration.

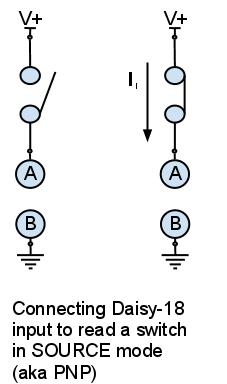

Up to 4 switches can be read in this configuration.

Mixed modes are easily handled by Daisy-18 as shown in the following case list:
Case A
Case B
Case C
Case D
Case E
Following there are some examples of code on how to use the Daisy-18 board.
Get the input state from one module:
Get the input state from two modules wired on the same daisy connector:
