Berta A5 - Evaluation board for Acqua SoM

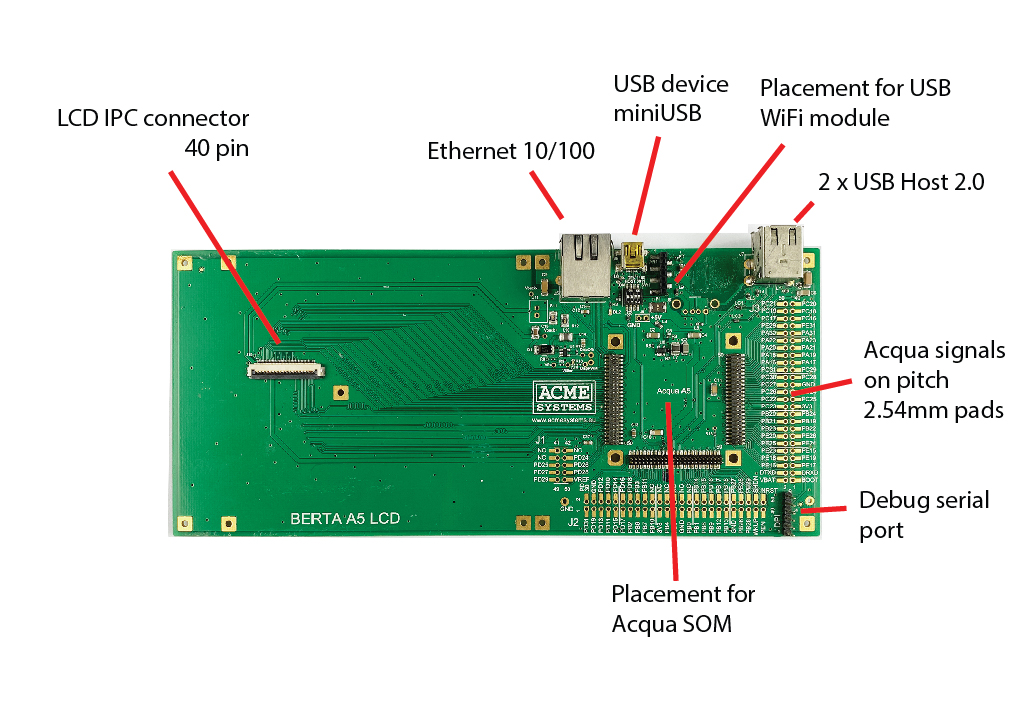

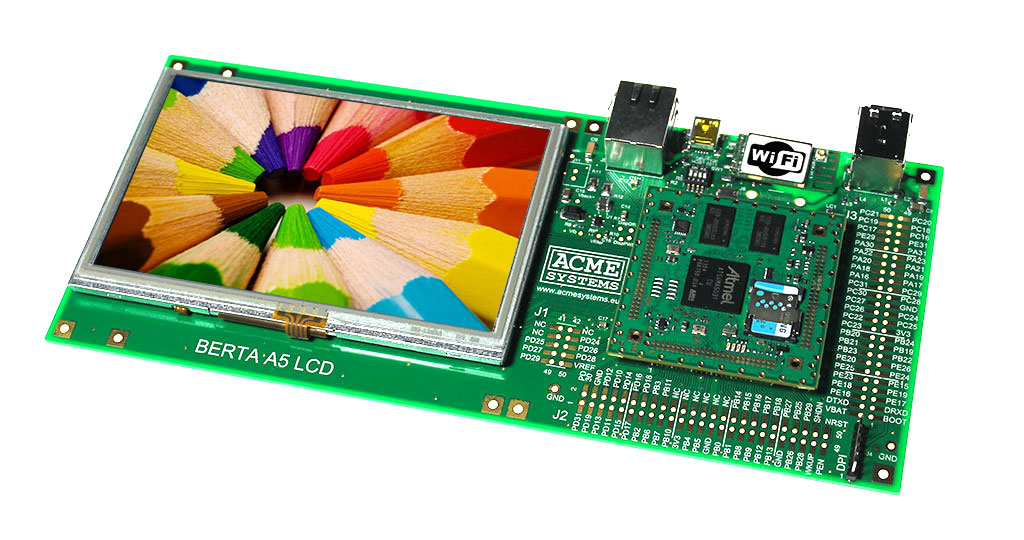

BERTA-A5-LCD Evaluation board

Evaluation boards for Acqua A5 SOM with ethernet, WiFi, 2 USB host, power section and 4.3", 5" and 7" TFT display with resistive touch

Features

  • Placement for a TFT LCD display size 4.3, 5.0 or 7.0 inches with resistive touch screen
  • Ethernet port at 10/100 Mbps
  • 2 USB 2.0 host hi-speed port
  • 1 USB 2.0 device hi-speed port or USB 2.0 host hi-speed port or placement for a WIFI-2 WiFi module.
  • MiniUSB power in
  • Placement for Acqua A5 SOM
  • All the Acqua lines not used by the on-board components are available on pads pitch 2.54 mm (100mils)
  • DPI port placement
  • Size: 10x25 cm

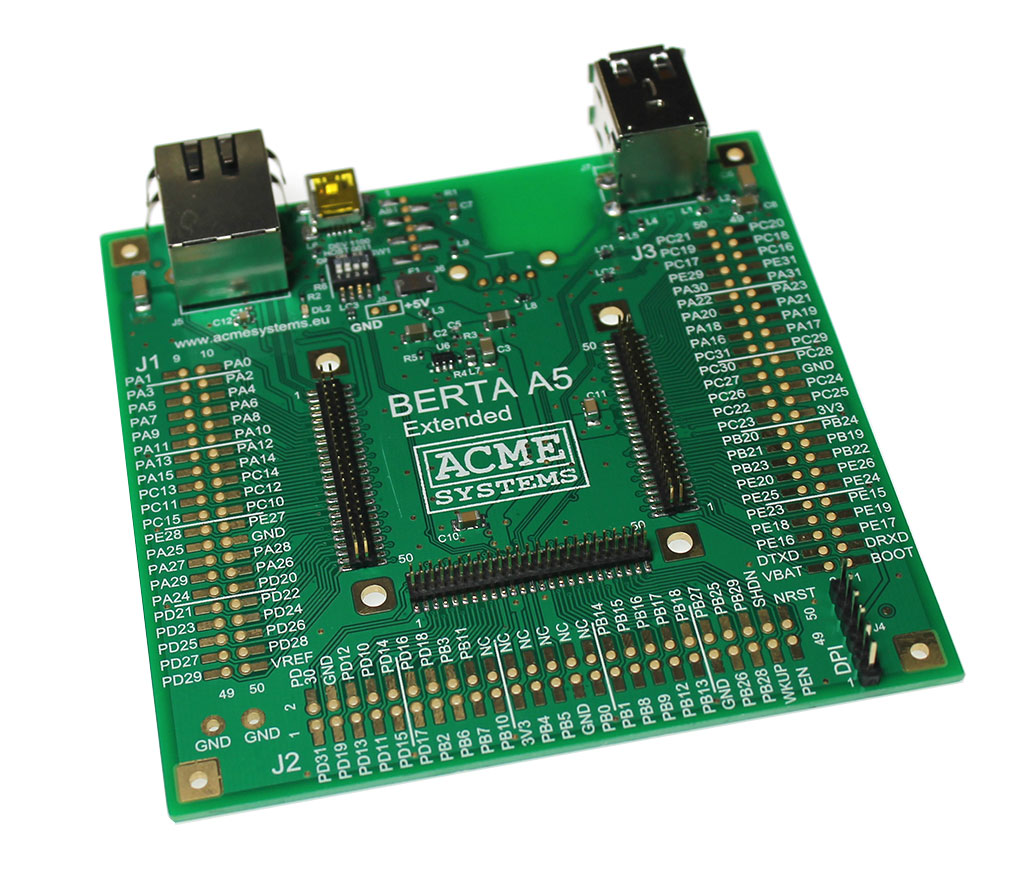

BERTA-A5-EXT

Evaluation boards for Acqua A5 Linux Embedded SoM with power supply section, ethernet ad USB connectors

Features

  • Ethernet 10/100
  • 2 USB 2.0 host hi-speed port
  • 1 USB 2.0 device hi-speed port or USB 2.0 host hi-speed port or placement for a WIFI-2 WiFi module.
  • Power supply at 5 volt DC via miniUSB connector
  • Placement for Acqua A5 SoM
  • All the Acqua lines not used by the on-board components are available on pads pitch 2.54 mm (100mils)
  • DPI port placement
  • Size 10x10 cm
  • Schematic in pdf format

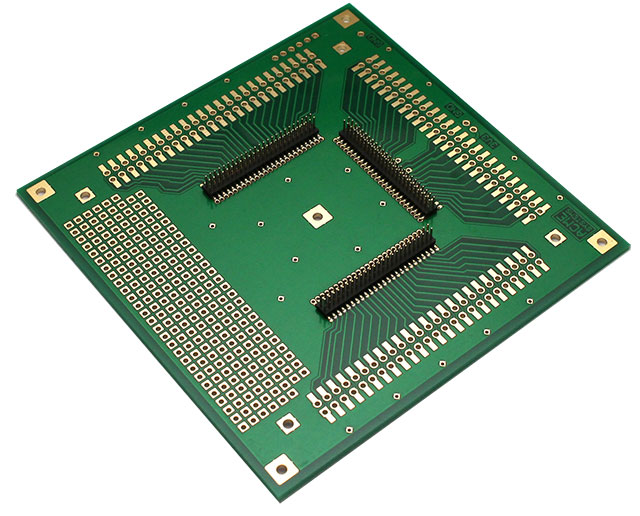

BERTA-A5-BASIC

Breakout and evaluation boards for Acqua A5 Linux Embedded System on Module

Features

  • Placement for Acqua A5 SoM
  • All the Acqua lines are available on pads pitch 2.54 mm (100mils)
  • DPI port placement
  • Size 10x10 cm

Buy

COMBO-B43
EUR 149.00


Acqua A5 + 4.3 inch TFT LCD evaluation kit

Basic kit to evaluate the Acqua A25 SoM with TFT LCD 4.3 inch

Parts included:

  • ACQUA-256E-N256 SoM (256 MB RAM , 256 MB Nandflash)
  • 4.3 inch TFT LCD with resistive touch (Code LCD-43-RT)
  • Berta board A5 LCD (Code BERTA-A5-LCD)
  • WIFI-2 WiFi module with PCB antenna
  • A bootable microSD with Debian Linux preinstalled
  • Debug port interface (Code DPI) with USB data cable
  • Wall adapter 5 volt @ 1A switching power supply (Code PS-5V1A-EU-MUSB)

| Product description | Acqua A5 catalog |

COMBO-B50
EUR 154.00


Acqua A5 + 5 inch TFT LCD evaluation kit

Basic kit to evaluate the Acqua A25 SoM with TFT LCD 5 inch

Parts included:

  • ACQUA-256E-N256 SoM (256 MB RAM , 256 MB Nandflash)
  • 5 inch TFT LCD with resistive touch (Code LCD-50-RT)
  • Berta board A5 LCD (Code BERTA-A5-LCD)
  • WIFI-2 WiFi module with PCB antenna
  • a bootable microSD with Debian Linux preinstalled
  • Debug port interface (Code DPI) with USB data cable
  • Wall adapter 5 volt @ 1A switching power supply (Code PS-5V1A-EU-MUSB)

| Product description | Acqua A5 catalog |

COMBO-B70
EUR 159.00


Acqua A5 + 7 inch TFT LCD evaluation kit

Basic kit to evaluate the Acqua A25 SoM with TFT LCD 7 inch

Parts included:

  • ACQUA-256E-N256 SoM (256 MB RAM , 256 MB Nandflash)
  • 7 inch TFT LCD with resistive touch (Code LCD-70-RT)
  • Berta board A5 LCD (Code BERTA-A5-LCD)
  • WIFI-2 WiFi module with PCB antenna
  • A bootable microSD with Debian Linux preinstalled
  • Debug port interface (Code DPI) with USB data cable
  • Wall adapter 5 volt @ 1A switching power supply (Code PS-5V1A-EU-MUSB)

| Product description | Acqua A5 catalog |
