BEE Board and Relay

How to manage relay quickly

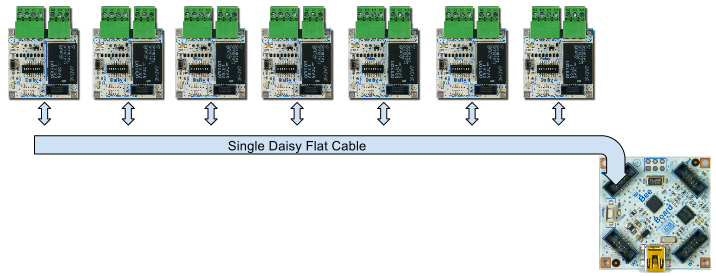

Multiple relays can be driven simultaneously

  • DIP8 is not available, it corresponds to 5V pin! (see pinout for more info)
  • Wing W2 only accepts DIP4 to DIP7.
  • Wing W3 only accepts DIP1 to DIP7.
  • Wing W4 only accepts DIP1 to DIP7. (I2C disabled)

A total of 18 relays can be used simultaneously.

Library to manage Daisy2 with BEE Board

  • Download and Install it by following this guide.
  • Plug Ribble Cable on Wings W2, W3 or W4.
  • Set Daisy4 Dip-Switch (more info)
  • open IDE and iclude Daisy4 Library.

Example: One Relay

OneRelay.pde

Example: Two Relays

TwoRelays.pde
