BEE Board and SD Card via SPI bus

This article illustrate how to connect and manage a SD Card with BEE Board via SPI using Daisy-12 protoboard.

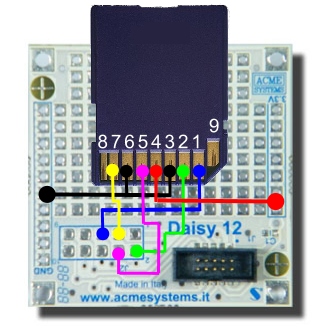

Wiring

Designed to work in W3 port

SignalSD PinW3 Pin
SS 1 5
MOSI 2 2
GND 3 10
3.3V 4 1
SCK 5 4
GND 6 10
MISO 7 3

SD Library

From version 22 SD Library is buit-in in Arduino IDE. Reference here

Features

  • FAT16/FAT32 support
  • micro SD/SD HC support
  • Create/Remove File
  • Read/Write File
  • managed Directory
