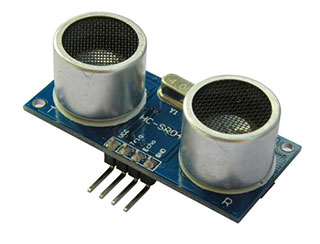

HC-SR04 ultrasonic sensor

"The HC-SR04 ultrasonic sensor uses sonar to determine distance to an object like bats or dolphins do. It offers excellent non-contact range detection with high accuracy and stable class='acmetable' readings in an easy-to-use package. From 2cm to 400 cm or 1" to 13 feet. It operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect). It comes complete with ultrasonic transmitter and receiver module".

This article illustrates how to interface the HC-SR04 to the Arietta G25 board.

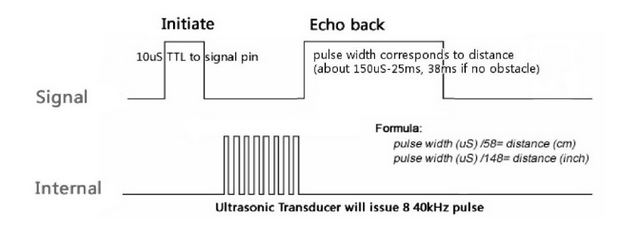

As explained in its user manual to start the distance measurement the TRIGGER pin of HC-SR04 must receive a pulse of high (5V) for at least 10us, this will initiate the sensor will transmit out 8 cycle of ultrasonic burst at 40kHz and wait for the reflected ultrasonic burst. When the sensor detected ultrasonic from receiver, it will set the Echo pin to high (5V) and delay for a period (width) which proportion to distance. To obtain the distance, measure the width (Ton) of Echo pin.

Time = Width of Echo pulse, in uS (micro second)

  • Distance in centimeters = Time / 58
  • Distance in inches = Time / 148

To generate the right TRIGGER signal and measure the ECHO impulse it is required a program that runs in Linux Kernel space and send back to the user space the measurement done.

This is code used to do that:

It generate a TRIGGER pulse when any program tries to read the contents of this file: /sys/class/hcsr04/value then use an interrupt routine and an hi-res timer to measure the incoming pulse on the ECHO line.


This is the schematic used. The GPIO line used can be changed inside the code source to any GPIO available.

A voltage translator is required to avoid to damage to the Arietta G25 GPIO lines.

Driver source compilation

To compile and install the hcsr04 driver you need to install the ARM9 cross toolchain on your Linux PC and generate you Linux image and driver modules following this article:

then clone the GitHub repository on your Linux PC

~$ git clone git://github.com/tanzilli/hc-sr04.git
~$ cd hc-sr04.git
~/arietta$ ./install.sh

Write inside the file install.sh the right Linux source folder and the password to access to your Arietta the compile and install:

~/arietta$ ./install.sh

Go to the Arietta command line and type:

# insmod hcsr04.ko

Now read the ECHO pulse duration in uS incoming from the HC-SR04 sensor by typing:

# cat /sys/class/hcsr04/value

To remove the module type:

# rmmod hcsr04

Python example

This is a programming example to read from the hcsr04 driver the sonar measurement in us and print the distance in cm. Copy this source on the Arietta G25:


Then type (don't forget to load the hcsr04.ko module before):

root@arietta:~# python distance.py
38.3 cm
