USB webcam

The Microsoft Lifecam HD3000 is a cheap true 720p HD 16:9 hi-res webcam with integrated mic. Removing the plastic shield and usb cable the internal circuitry is just 34x20x6 mm size perfect to be used with the Aria G25 module.

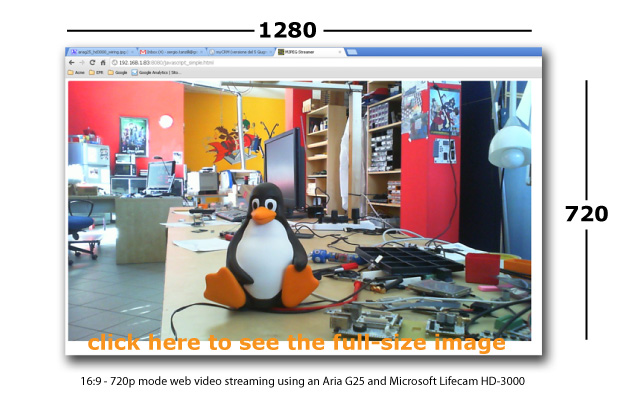

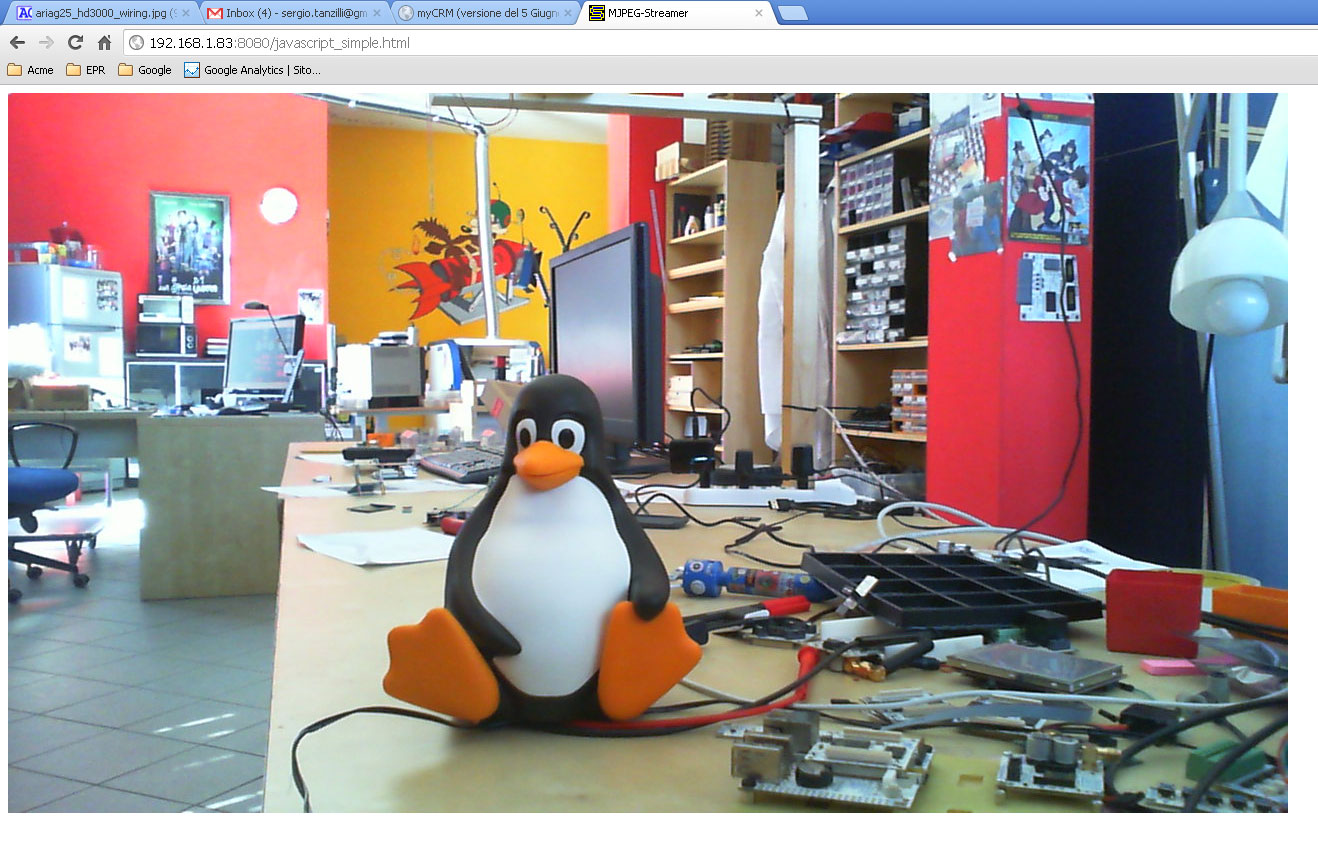

Using the hi_speed USB port A or B it is possible to stream mjpg video at 1280x720 pixel @ 30fps.

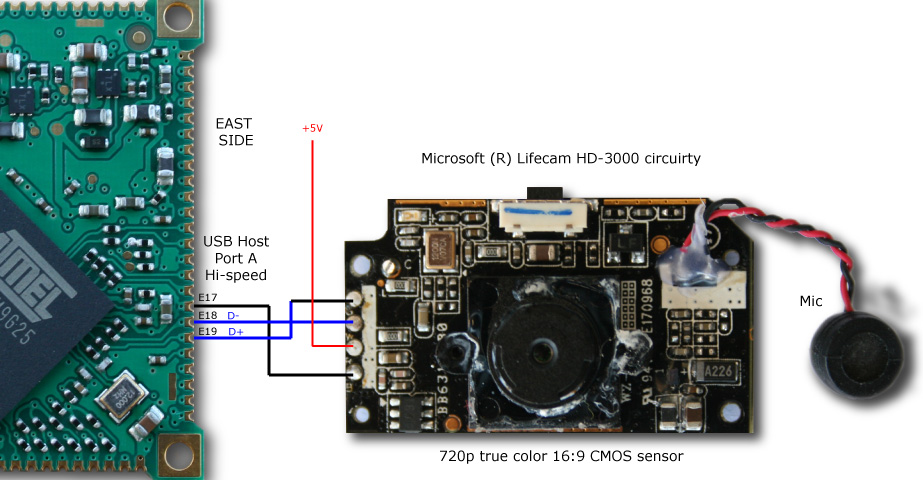

Aria pins HD-3000
E19 (D+) Green (D+)
E18 (D-) White (D-)
Red (+5V)
E17 (GND) Black (GND)
