Acme Sensor collection
A collection of high-accuracy, small footprint, high reliability, low-power and cost effective sensors ready to be connected
to the FOX Board D27 and Berta-H10 fast prototiping board.
AS-TEMP-RH - Temperature and Humidity sensor
Texas HDC3020 Digital Humidity and Temperature Sensor With Ultra-Low Drift

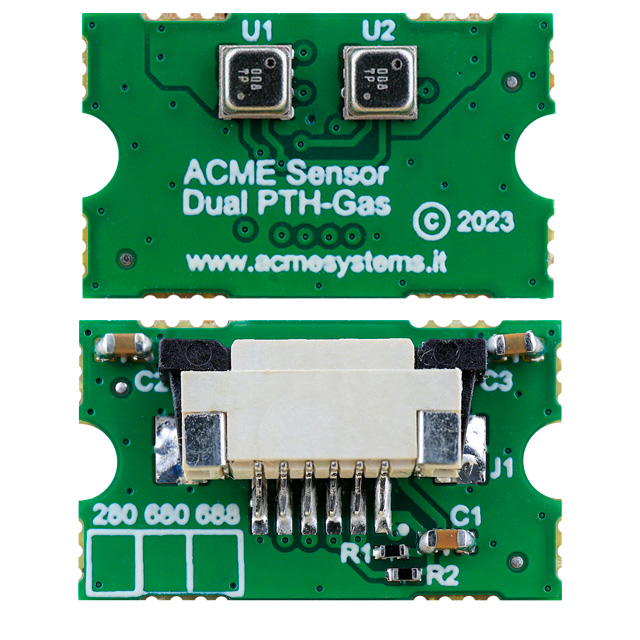

AS-PTH-BME-DOUBLE - Gas, Pressure, Humidity and Temperature sensor
Double Bosch BME688 gas sensor with Artificial Intelligence (AI) and integrated high-linearity and high-accuracy pressure, humidity and temperature sensors.
Available also with a single BME688.
AS-NDIR-CO2 - NDIR CO2 sensor
Senseair Sunlight CO2 sensor with NDIR technology

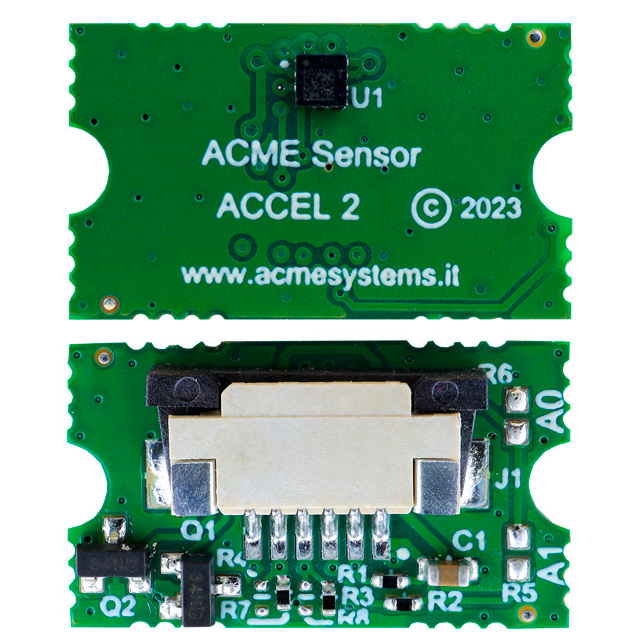

AS-ACCEL-2 - 3-axis MEMS accelerometer
Texas LIS2DW12 3-axis MEMS accelerometer
AS-FPC-TO-254 - 6 wires FPC to 6 pins picth 2.54mm adapter
This adapter allows you to connect a breadboard to make your own Acme Sensor board
Related products
Create your own battery free energy harvesting solar powered LoRa sensors in minutes
- Very low power circuitry: 4.29 µW in stand-by, 66 mW in transmit mode
- Energy harvesting from in-door ambient light (Just 50 lux)
- Battery free energy storage based on hybrid supercap
- Custom designed ISM antenna for top level perfomance
- Fully open source real time operating system with ready to use example of applications
- Ready for LoRa and LoRaWan applications
- Modular design
- Credit card footprint
- Cortex-M0 class of CPU
- Based on H10 LoRa module
- 3 Acme Sensor ports
Single Board Computer based on RoadRunner Linux SOM (Included)
- Classic "Credit Card" form factor
- Two USB Host 2.0 ports (one configurable as USB client on the USB-C connector)
- One 10/100 Mbit/s Lan port
- 2 Acme Sensor ports
- Double placements for 2.54mm pitch 20x2 pinstrips (not soldered) for GPIOS, SPI, I2C, Serial etc ports
- Credit Card footprint
