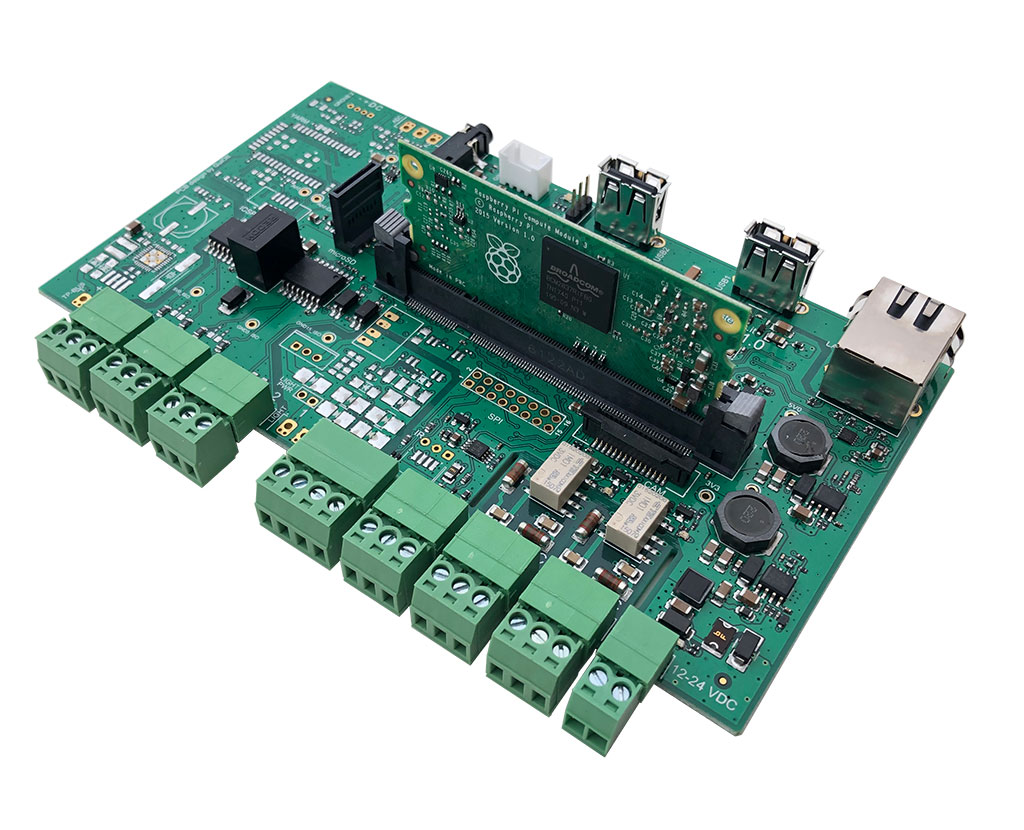

CM-Home - Home Automation board for Raspberry Pi CM4S module
CM-Home is a board designed to provide a reliable solution to use the
power of Raspberry Pi CM4S module in harsh environments implementing
protection against EMI and static charges and a form factor ready
for DIN rail mounting.
Features
- CPU Raspberry Pi CM4S lite
- Socket for microSD
- Power-in @ 12 to 24VDC
- 2 USB 2.0 host port
- 1 Ethernet port at 10/100Mbit
- 1 Stereo audio out on 3.5 mm jack
- 1 Camera connector
- 1 Debug serial console port
- 1 Generic serial port
- 2 Low voltage relay
- 1 One-Wire bus
- 2 Opto-isolated dry contact inputs
- 2 Opto-isolated RS-485 ports
- 1 I2C Seeedstudio Grove connector
- Power consumption: 250mA @ 12 volt
Option:

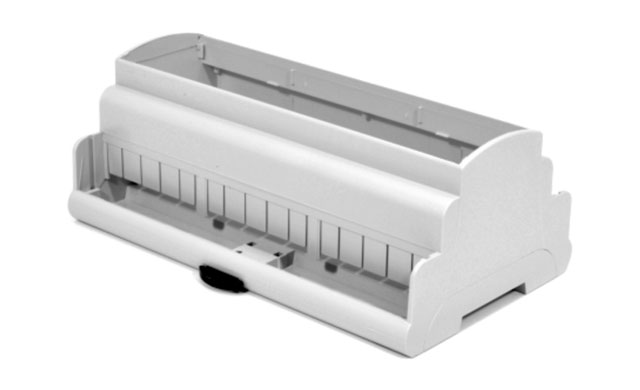

Enclosure
CM-HOME board has been designed to be enclosed inside a 9 module DIN RAIL case made by ELBag http://www.elbag.net/9k_I.html
