FEATURES

* The LA-119 is a system designed to fit up to 7 external units into a mastering chain. * The LA-119 is completely and absolutely an analog design. * Balanced inputs and outputs. * The large linearity over 250 kHz and the very low distortion guarantee absolute quality. * Very high headroom level allows the LA-119 to be used with analog signals (+ 4 dBu) and with the higher level signals used by digital converters. * The standard analog level ( + 4 dBu ) is used for the inserts, allows you to use all the older generation analogical outboards
( eg compressors / limiters at FET ) that aren’t able to operate at a high signal level. * The 7 insert are divided into 3 groups of 2 insert, each plus one. * All switch routings are made with sealed relays and gold contacts. * Each insert has DRY/WET control to allow parallel processing + a total DRY/WET. * Separate input levels for LEFT and RIGHT channels with 12 steps controls (-2.5 dB / 3 dB with 0.5dB / step). * 2 selectable class='acmetable' or summable inputs with balance control ( +/- 2 dB ) * Each imput has a pad ( 0/-6db ) features a 6 dB pad. * The Level 0 is used for the signal coming from an analog mixer, level -6 dB is used for a signal from a digital converter. * The 2 independent inputs allow to set up 2 jobs and to process 2 signals separately ( ex. voice and instruments ) then

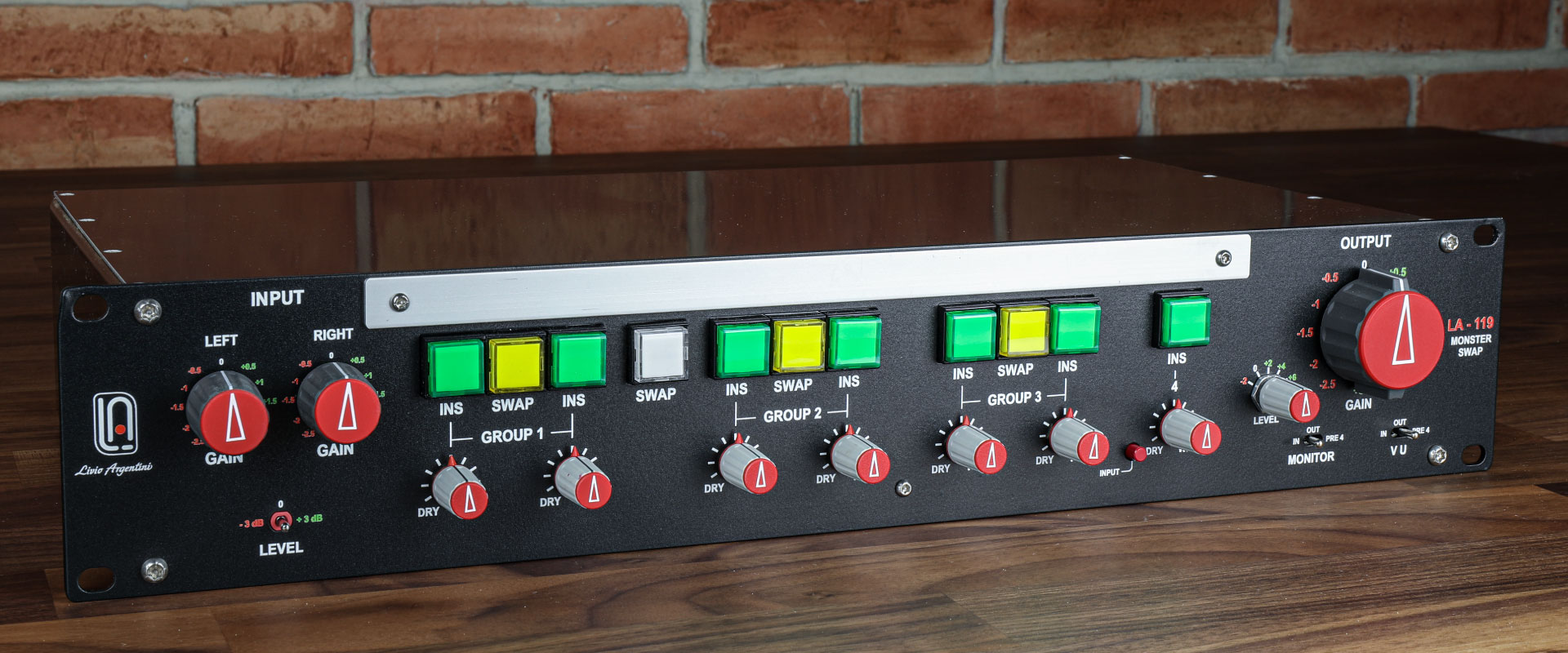

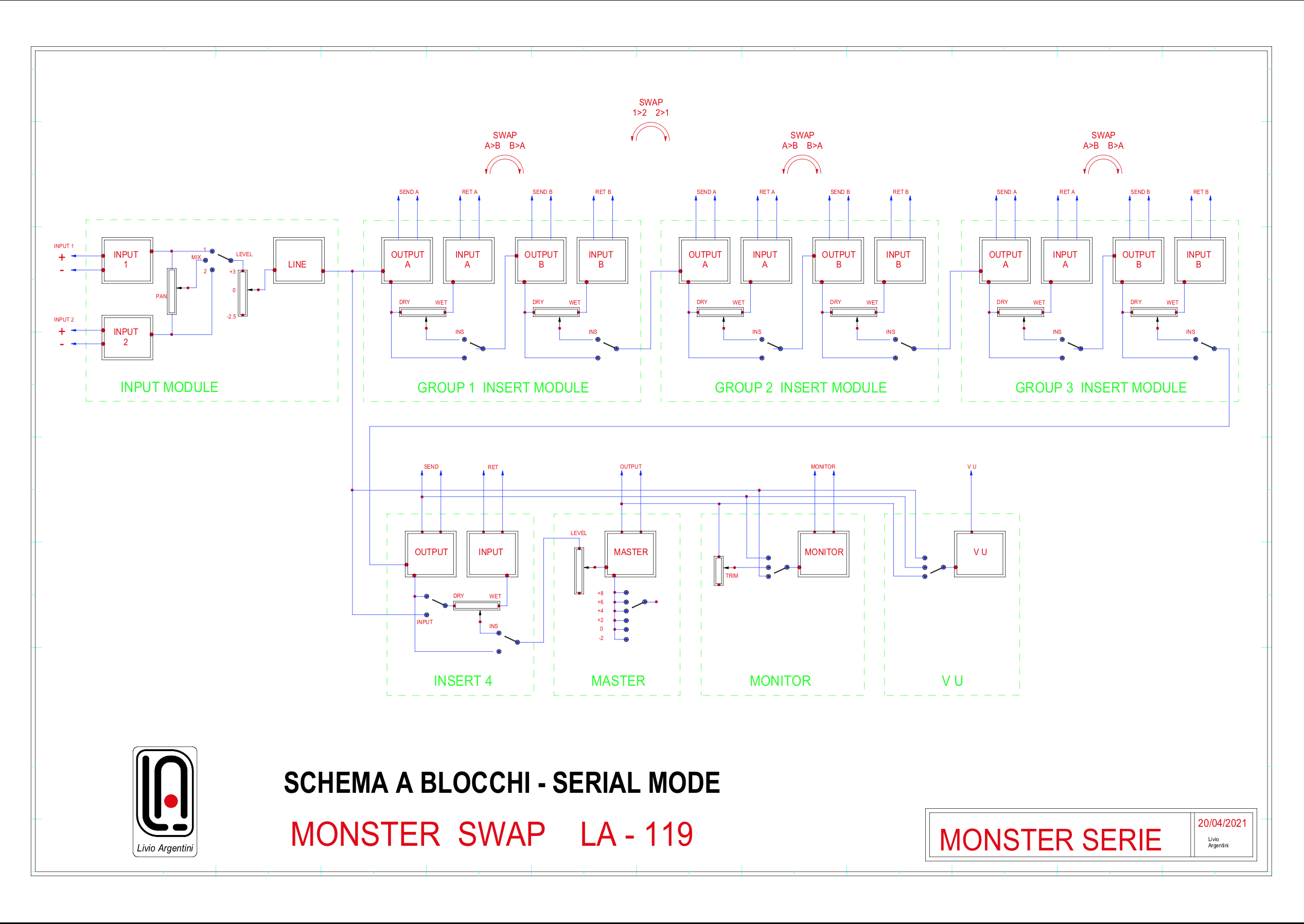

mix and process the mix using insert group 3 and insert 4 * LA-119 has connections for 7 separate external insert units. * There are 3 groups of 2 insert units each plus one final insert. * LA-119 provides 2 modes of use: SERIAL or SPLIT SERIAL MODE: *The 2 inputs (selected or summed) are sent to group inserts 1/2/3/4 where they are connected in cascade.

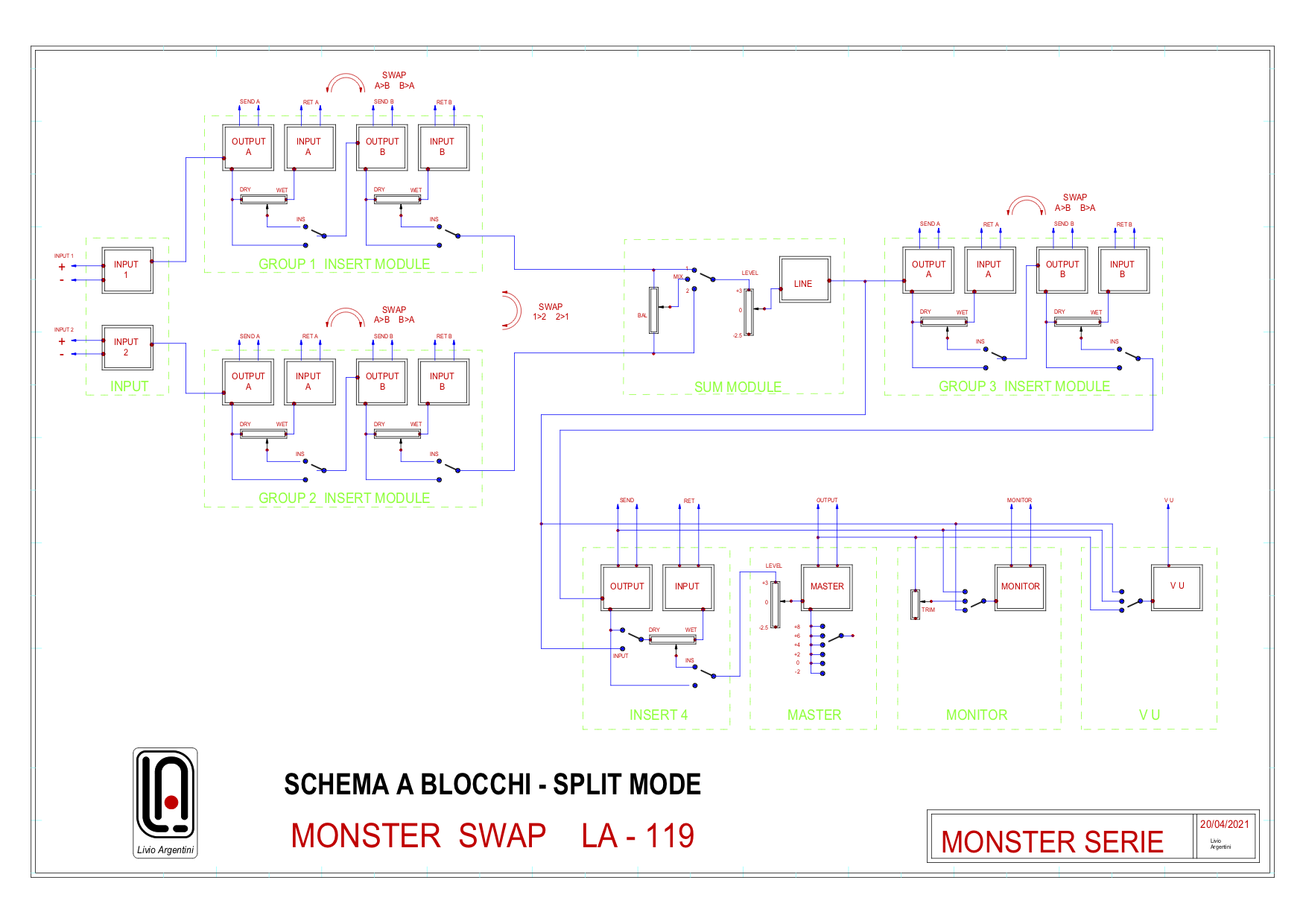

SPLIT MODE:
Input 1 is sent to group insert 1
Input 2 is sent to group insert 2
With the SWAP control it is possible to move the outboards from group 1 to group 2 and vice versa
The 2 groups are selectable class='acmetable' or summable with balance control (+/- 2 dB)
Group 3 + insert 4 are common to the 2 channels after the sum.

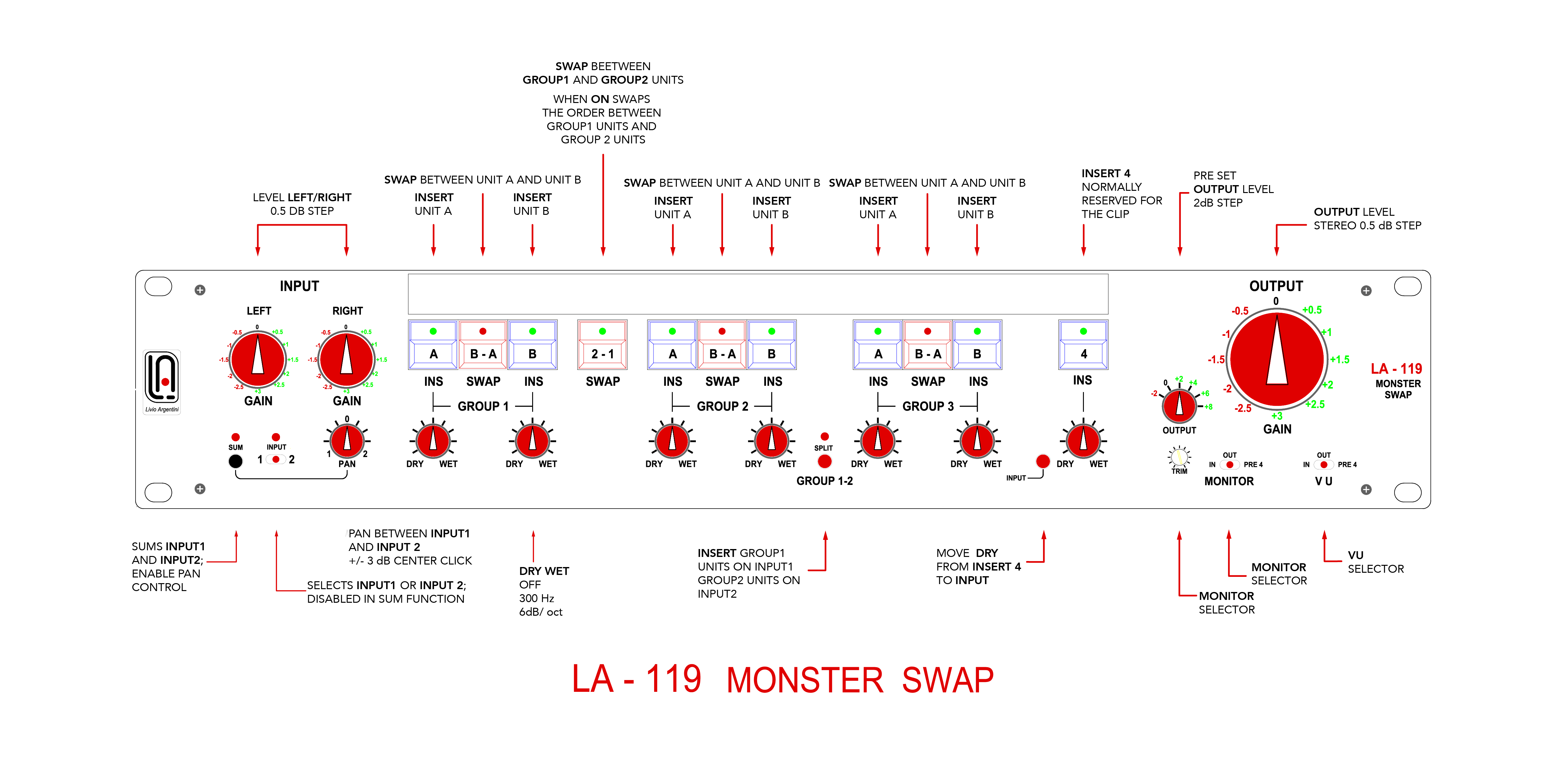

* __GROUP 1__: * 2 inserts ( A / B ), with dry/wet control for each one * Swap ( from A-B to B-A ) * __GROUP 2__: * 2 inserts ( A / B ) with dry/wet control for each one * Swap ( from A-B to B-A ) * Swap ( from group 1-2 to group 2-1 ) * __GROUP 3__: * 2 inserts ( A / B ) with dry/wet control for each one * Swap ( from A-B to B-A ) * __INSERT4__: * This last insert normally is dedicate for a final clip/limiter. * Dry/wet control switchable from insert 4 only or input/output. * Output level for both channels with a 12 stepped control ( -2.5 dB / +3 dB with 0.5 dB ) * 6 steps output level control for both channels ( -2 / 0 / +2 / +4 / +6 / +8 dB ) This control is used to raise up the standard +4dbu signal to
adapt it to the level required by the converters. * Monitor out selectable class='acmetable' ( input / output / pre insert 4 ) In the OUT position is provided a trim to attenuate the highest level. * The monitoring before and after insert 4 is scheduled because the final CLIP is always the most critical * VU Meter out selectable class='acmetable' ( input / output / pre insert 4).

Technical specification

Channels	2
Input Input level Input impedance	Electronically balanced +4dBu, Max +28dBu ( +10 dBu with input pad) > 10 kΩ
Output Output Level Output impedance	Electronically balanced +4dBu, Max +28dBu 100Ω ( minimum external load 600Ω ).
Insert Send Send Level Send Impedance	Electronically balanced +4dBu, Max +28dBu 100Ω ( minimum external load 600Ω ).
Insert Return Return Level Return Impedance	Electronically balanced +4dBu, Max +28dBu > 10 kΩ
Monitor Output Output Level Output impedance	Electronically balanced +4dBu, Max +28dBu 100Ω ( minimum external load 600Ω ).
VU Output Output Level Output impedance	Unbalanced +4dBu, Max +28dBu 100Ω ( minimum external load 600Ω ).
Bandwidth	4 - 350.000 Hz +0,-1 dB, perfect square wave up to 50 kHz
Distortion + Noise	<0.005% ( typical 0.001 %)

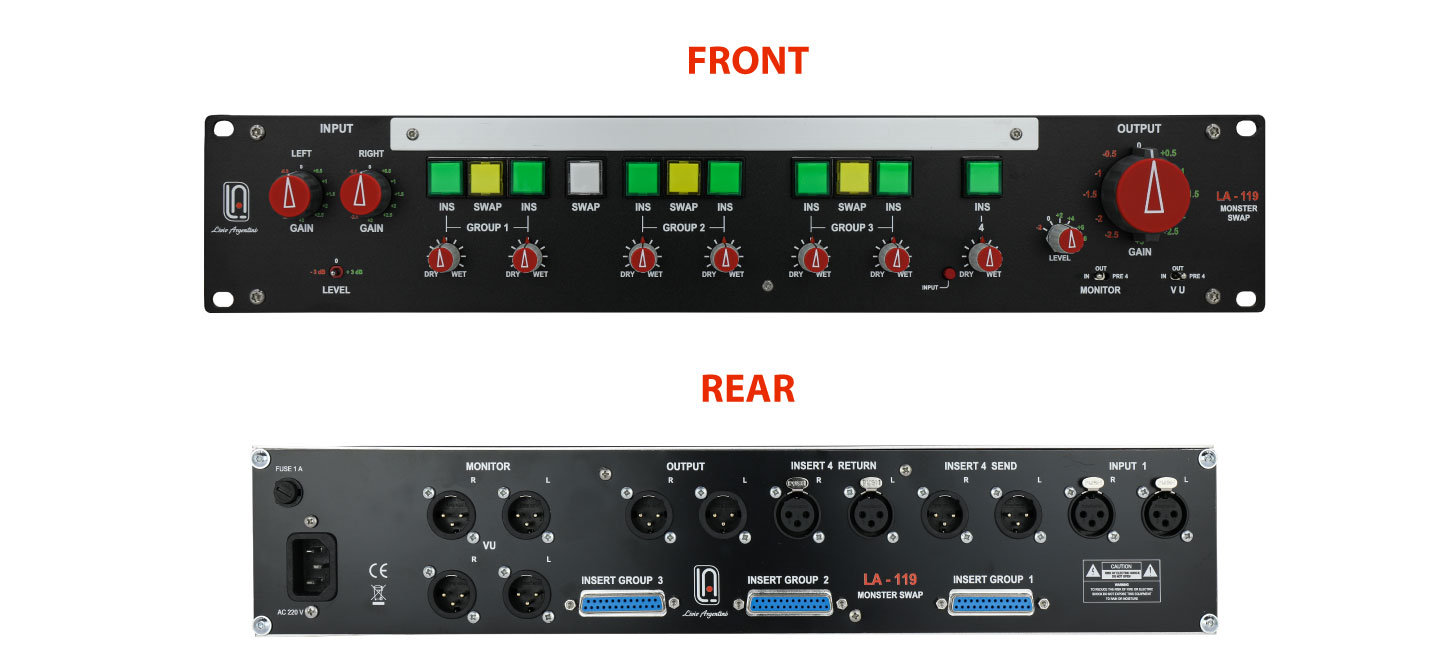

Connectors	Rear Panel - 3 poles XLR + DB 25 Optional all 3 poles XLR
Power Supply Operating Voltage Power Consumption Rear Panel AC mains Rear Panel Main Switch	Linear Regulator (Balanced Toroidal Transformer ) 220V 50 Hz, ( 110V 60 Hz version switchable ) 60 W IEC C13 16 A connector, AC mains cord with IEC Schuko Power On/Off switch
Construction Dimensions Weight	2Unit, 19" rack mount metal box W 483 mm / 19”, H 88 mm / 3.5” (2unit), D 225 mm / 8.8” 5 kg / 11 lb

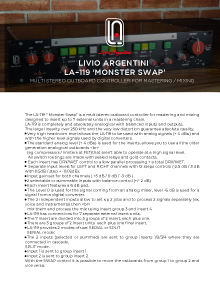

Depliant
