LA-83-MINI SWITCH / MONITOR
LA – 83 MINI SWITCH / MONITOR
The MINI SWITCH LA-83 series consists of three models:
LA-83 IN allows you to switch 4 stereo inputs to a single stereo output.
LA-83 OUT allows you to switch 1 stereo output to 4 stereo inputs.

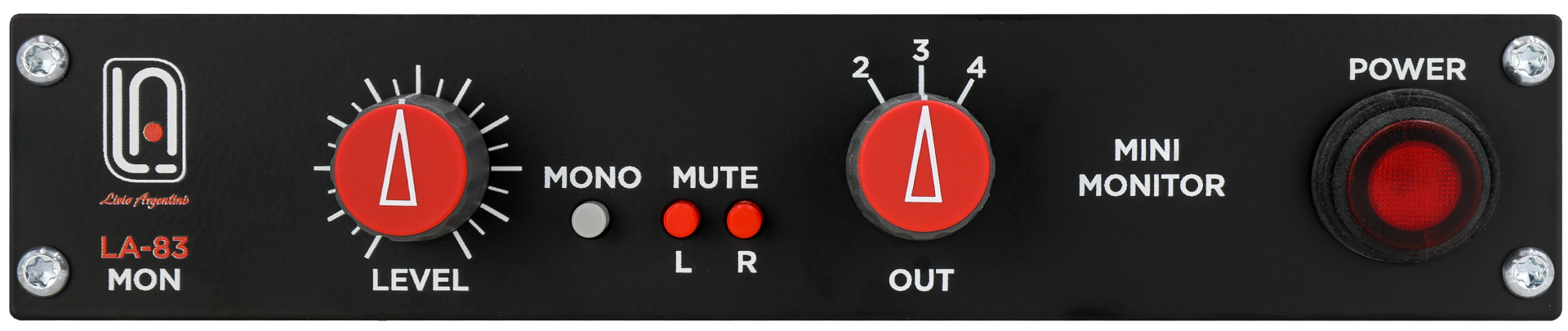

LA 83 MON is the same as LA 83 OUT but is designed to switch 4 speaker systems and has additional level, mute and mono controls.
All the circuitry is passive.
The cabinet is half a 19 "1 unit rack, and any two MINI units can be joined to form a 19" unit.

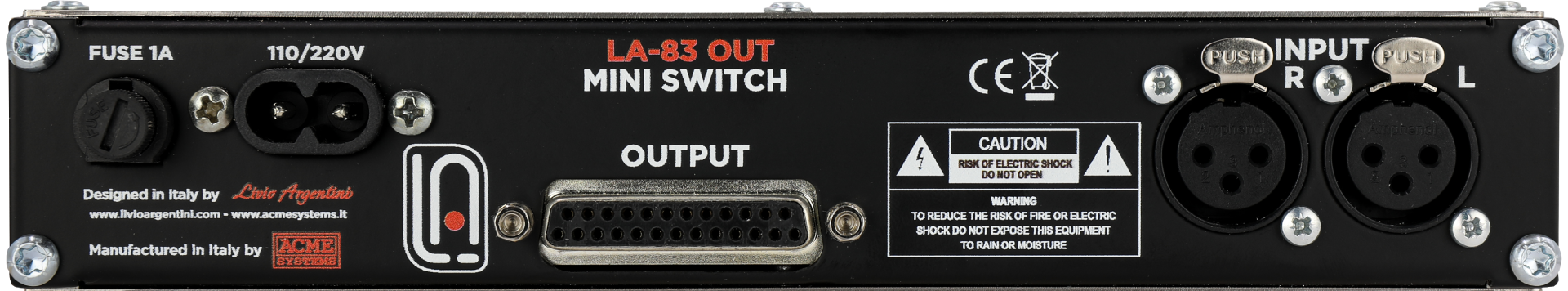

XLR and DB 25 connectors on the rear panel.
A special feature of the 83 series: when the LA 83 is off, switching 1 is always active.
In the LA 83 MON model also all the controls remain active.

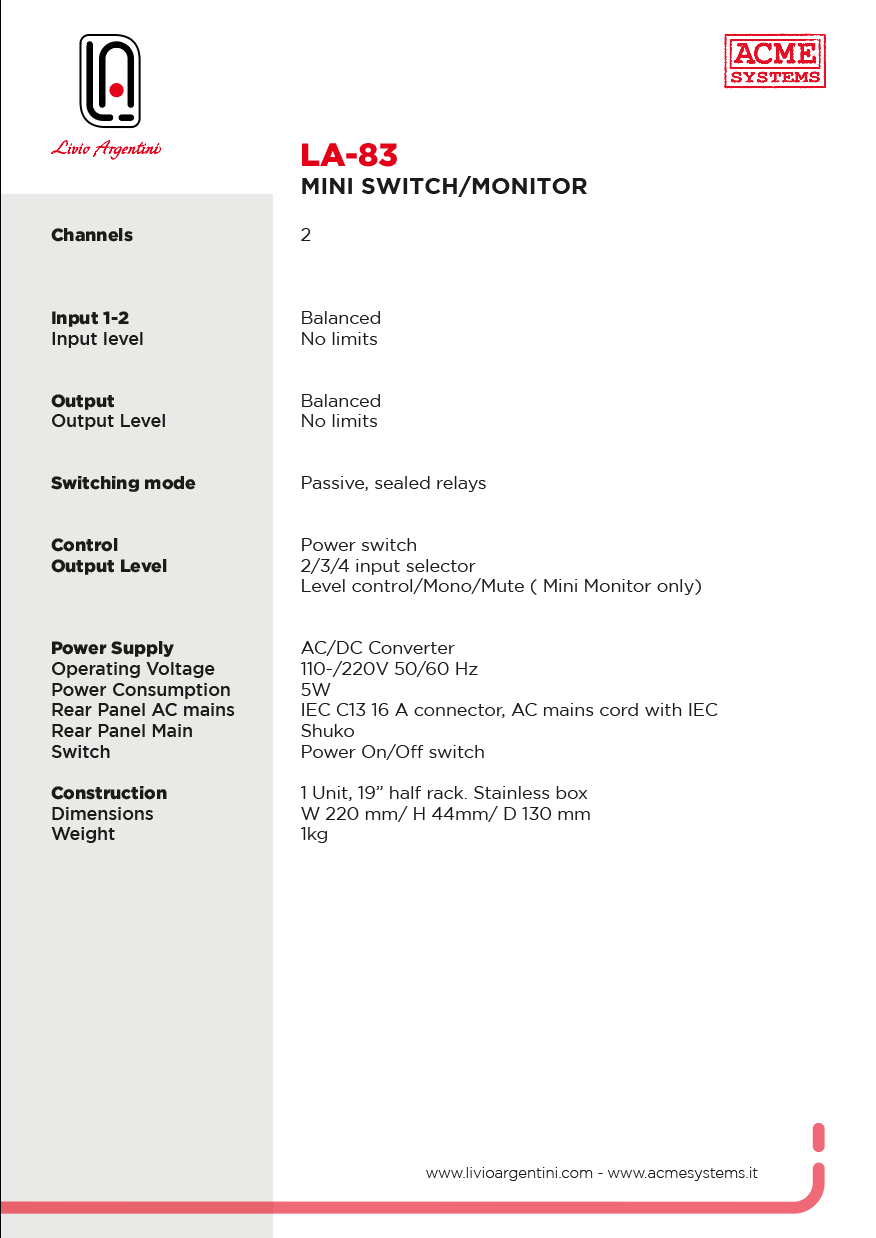

Technical specification
| Channels | 2 |
| Input 1-2 Input level |
Balanced No limits |
| Switching mode |
Passive, sealed relays |
| Control | 2/3/4 input/output selector Level control/mono/mute (Mini Monitor only) |
| Connectors | Rear Panel - 3 poles XLR - DB 25 |
| Power Supply Operating Voltage Power Consumption Rear Panel AC mains Rear Panel Main Switch |
AC/DC Converter 110/220V 50/60 Hz 5 W IEC C13 16 A connector, AC mains cord with IEC Schuko Power On/Off switch |
| Construction Dimensions Weight |
1Unit, 19" half rack. Stainless steel metal box W 220 mm / H 44 mm / D 125 mm 1 kg |
