LA-82 DUAL PHONES AMPLIFIER

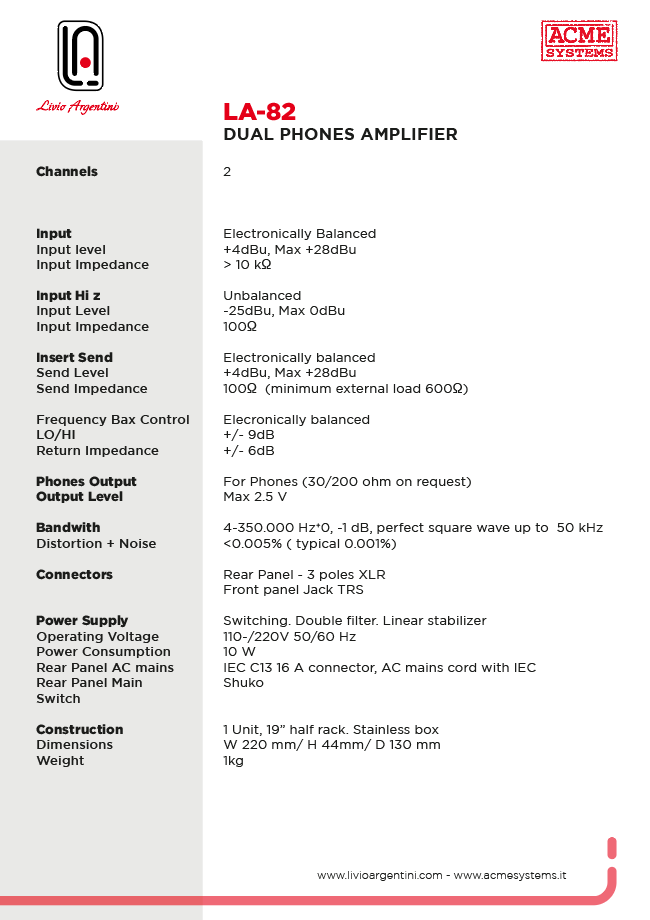

Technical specification
| Channels | 2 |
| Input Input level Input impedance |
Electronically balanced +4dBu, Max +28dBu > 10 kΩ |
| Input Hi z Input Level Input impedance |
Unbalanced -25dBu, Max 0dBu 100Ω |
| Insert Send Send Level Send Impedance |
Electronically balanced +4dBu, Max +28dBu 100Ω ( minimum external load 600Ω ). |
| Frequency Bax Control LO/HI Return Impedance |
Electronically balanced +/-9dB +/-6dB |
| Phones Output Output Level | For Phones 30/200 ohm.( 200/600 ohm on request ) Max 2.5 V |
| Bandwidth | 4 - 350.000 Hz +0,-1 dB, perfect square wave up to 50 kHz |
| Distortion + Noise | <0.005% ( typical 0.001 %) |

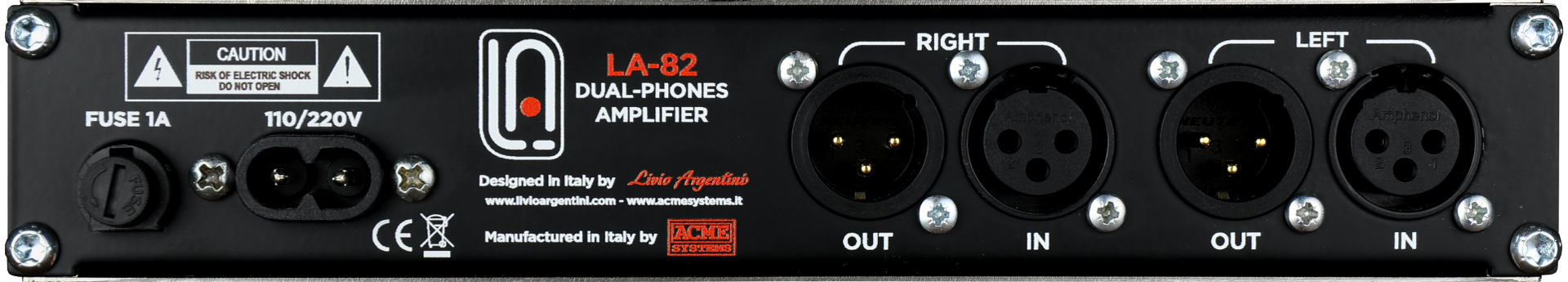

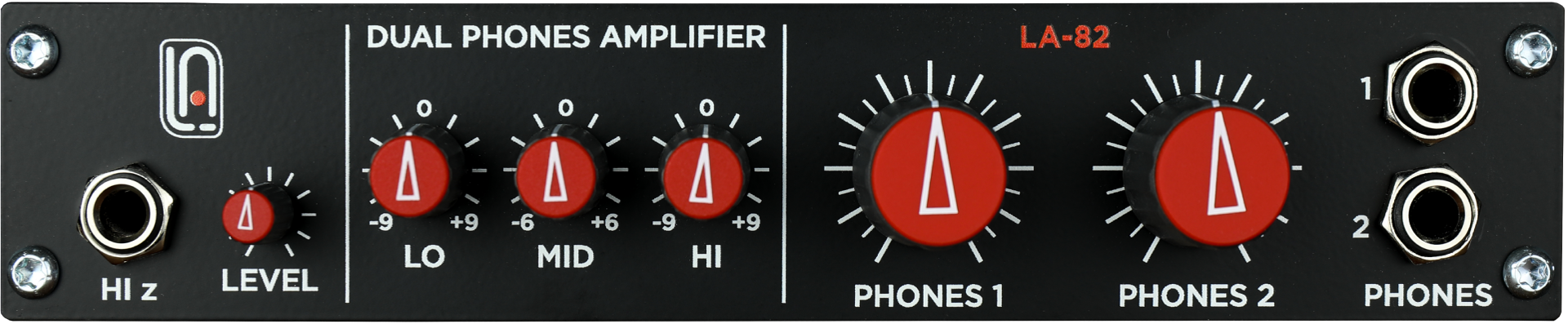

| Connectors | Rear Panel - 3 poles XLR Front panel Jack TRS |
| Power Supply Operating Voltage Power Consumption Rear Panel AC mains Rear Panel Main Switch |
Switching. Double filter. Linear stabilizer 110-/220V 50/60 Hz 10 W IEC C13 16 A connector, AC mains cord with IEC Schuko |
| Construction Dimensions Weight |
1Unit, 19" half rack.Stainless box W 220 mm / H 44 mm / D 130 mm 1 kg |
