LA-126 MULTICHANNEL MONITOR CONTROLLER
LA–126 MULTICHANNEL MONITOR CONTROLLER
The LA 126 is especially designed as a multichannel level controller.
LA-126 can control up to 16 channels
3 FUNCTIONS:
- STEREO 1. 2 channels control ( left/right. input/output 13/14 )
- 7.1.4 12 channels control ( Dolby Atmos. input/output 1/12 )
- STEREO 2. 2 channels control ( left/right. input/output 15/16 )

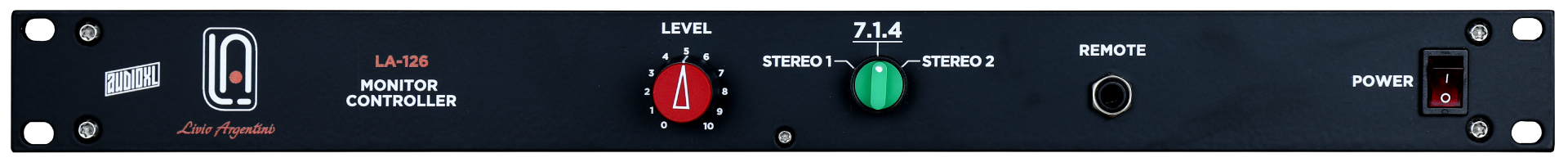

Illuminated 3 position rotative switch
Level control by VCA.
One knob only controls all the 16 outputs.

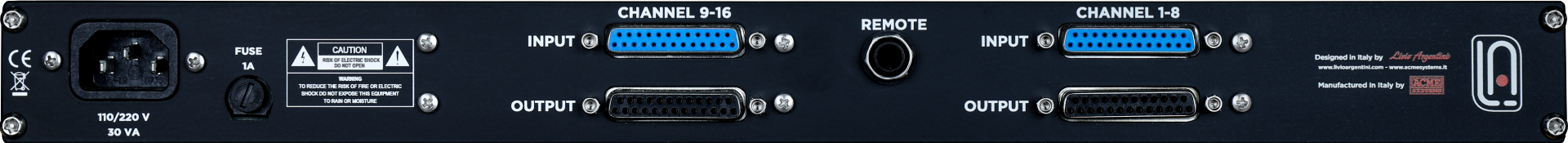

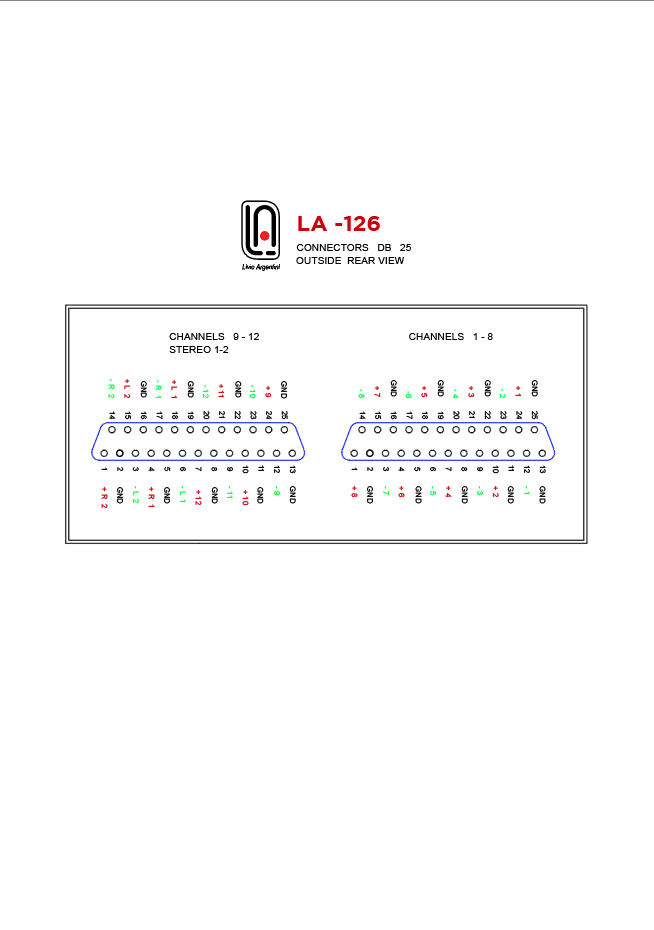

LA-126 can be used as a remote control if it is placed outside of the desk. DB-25 pole connectors on back panel
LEVEL CONTROL
- The correct use of the la-126 unit requires a proper level regulation procedure
- Send to the la-126 unit the signal with the right work level
- Set the level control of the la-126 unit in position “two o’clock”
- Increase the external amplifier level control in order to have the correct listening level
- In some cases it is necessary to insert an external attenuator at the amplifiers’s input

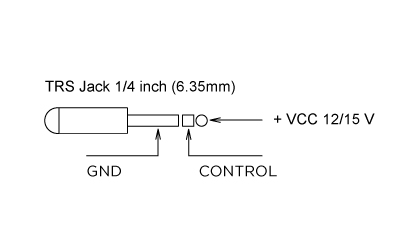

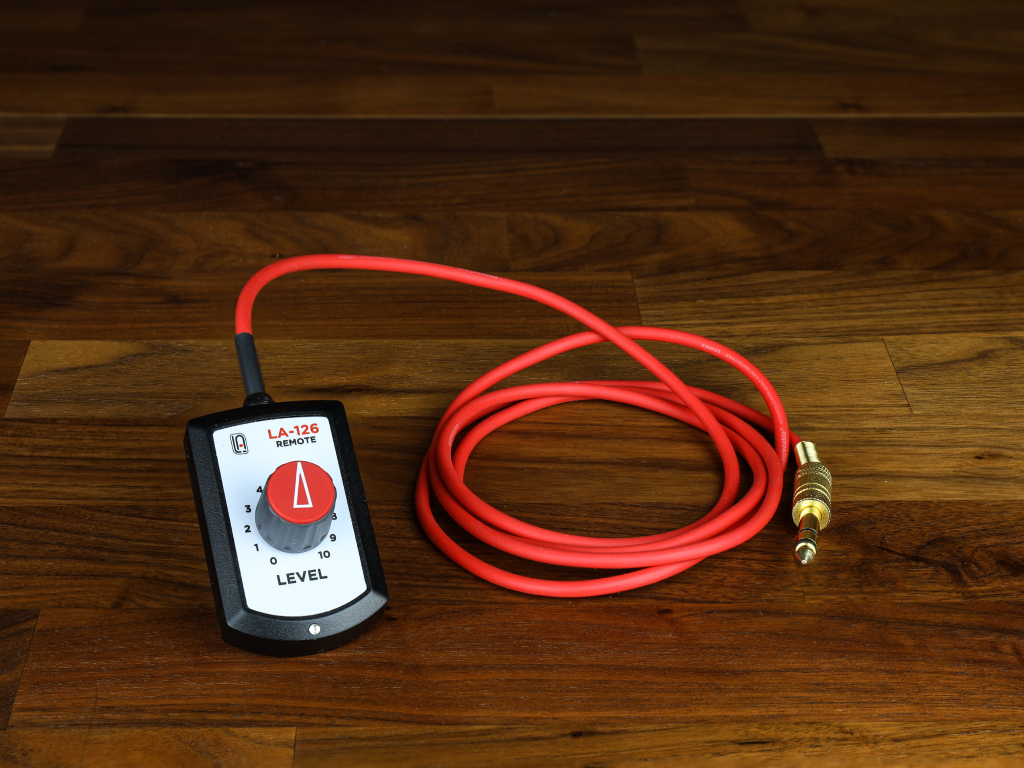

LA-126 REMOTE
Insert the jack only when the unit is turned off
The insertion of the rear jack deactivates the control on the front panel
The insertion of the front jack deactivates both the control on the front panel and the remote insert on the rear jack

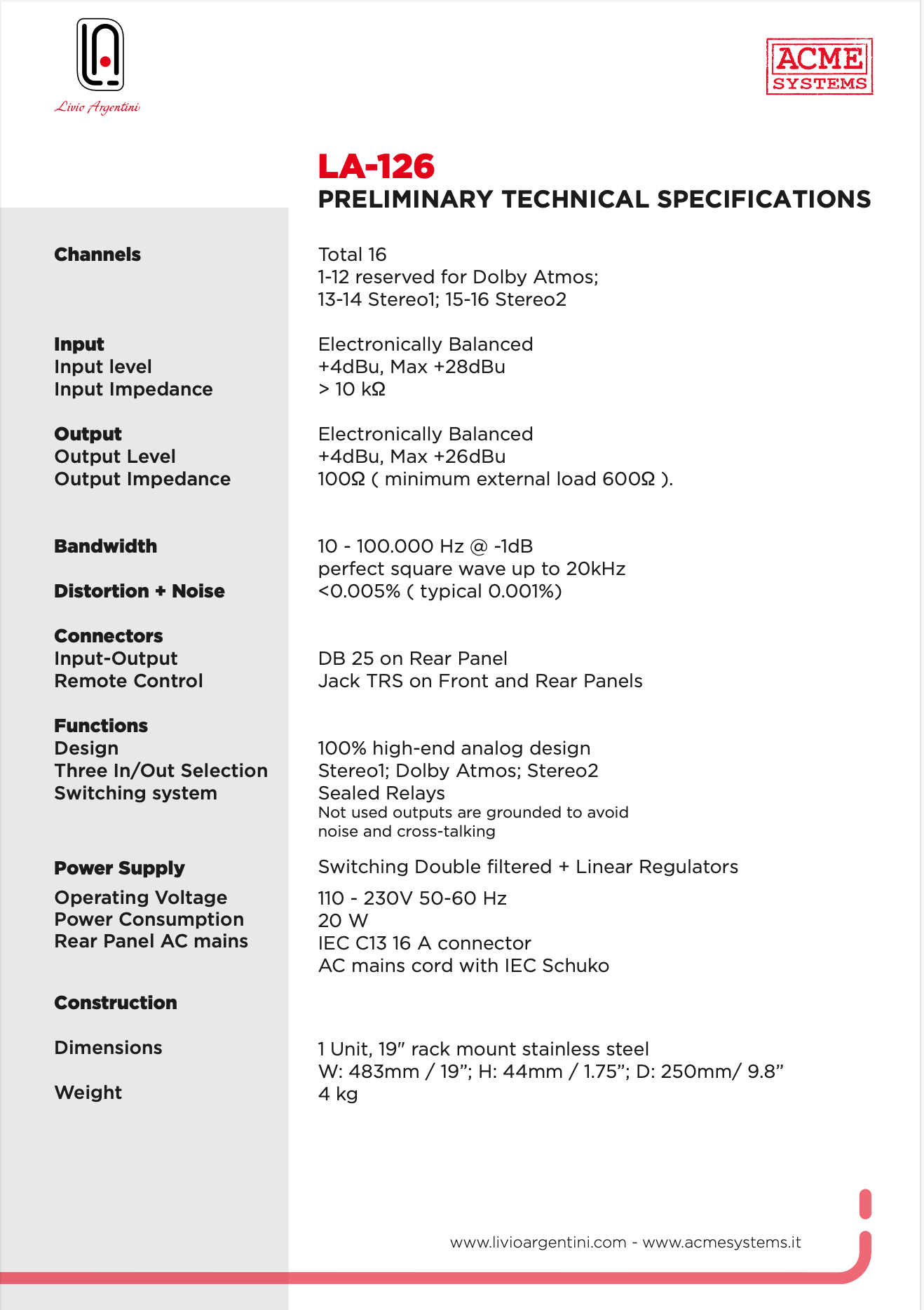

Technical specifications
| Channels | total 16 1-12 reserved for Dolby Atmos; 13-14 Stereo1; 15-16 Stereo2 |
| Input Input level Input impedance |
Electronically balanced +4dBu, Max +28dBu > 10 kΩ |
| Output Output Level Output impedance |
Electronically Balanced -25dBu > Max 0dBu 100Ω ( minimum external load 600Ω ) |
| Bandwidth | 10 - 100.000 Hz @ -1dB perfect square wave up to 20kHz |
| Distortion + Noise | <0.005% ( typical 0.001 %) |
| Connectors Input-Output Remote Control |
DB 25 on Rear Panel Jack TRS on Front and Rear Panels |
| Functions Design Three In/Out Selection Switching system |
100% high-end analog design Stereo1; Dolby Atmos; Stereo2 Sealed Relays. Not used outputs are grounded to avoid noise and cross-talking |
| Power Supply Operating Voltage Power Consumption Rear Panel AC mains | Switching Double filtered + Linear Regulators 110 - 230V 50-60 Hz 20 W IEC C13 16 A connector, AC mains cord with IEC Schuko |
| Construction Dimensions Weight |
1Unit, 19" rack mount stainless steel W 483mm 19"/ H 44 mm /1.75 " D 250 mm /9.8" 4 kg |
