LA-89 SELECTIVE SNATURATOR

19" rack mounting

Technical specification

Channels 1
Input1
Input level
Input impedance
Electronically balanced
+4dBu, Max +28dBu
> 10 kΩ
Output
Output level
Output impedence
Electronically balanced
+4dBu, Max +28dBu
100Ω ( minimum external load 600Ω ).

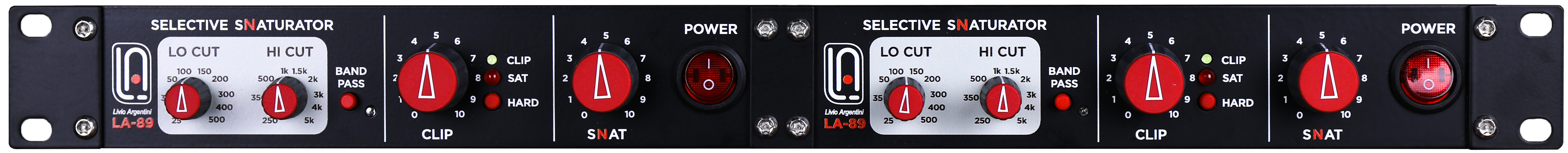

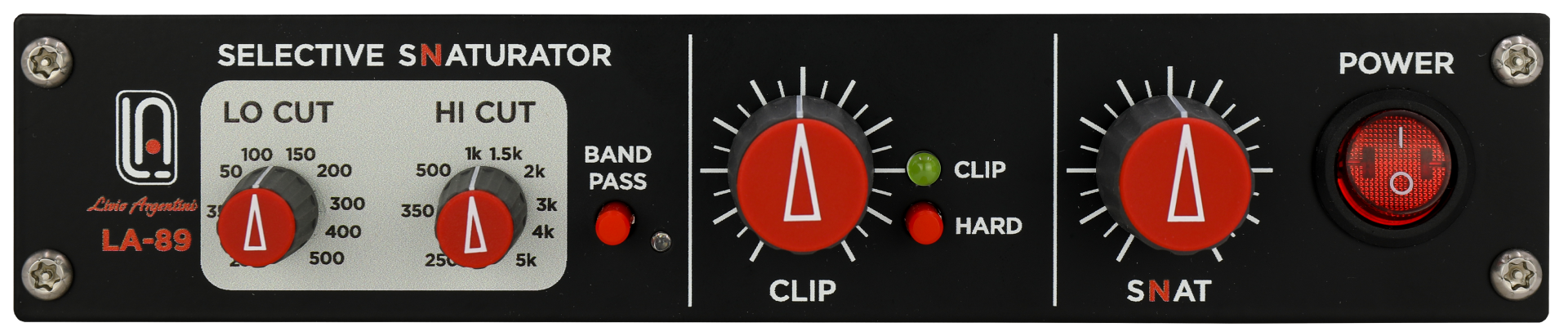

Band pass filter
Lo cut pre Clip
Hi cut pre Clip
Lo cut post Clip

25/500 Hz. 12 dB/oct
250/5000 Hz. 12 dB/oct
250/5000 Hz. 12 dB/oct
Clip Systems Multi LED
Bandwidth 45 - 200.000 Hz -1dB
Distortion + Noise <0.005% ( typical 0.001 %)

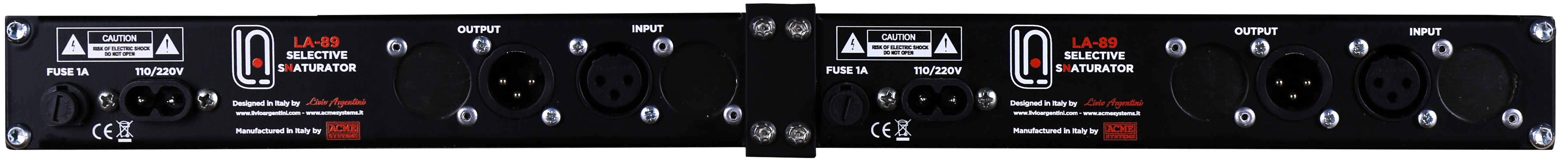

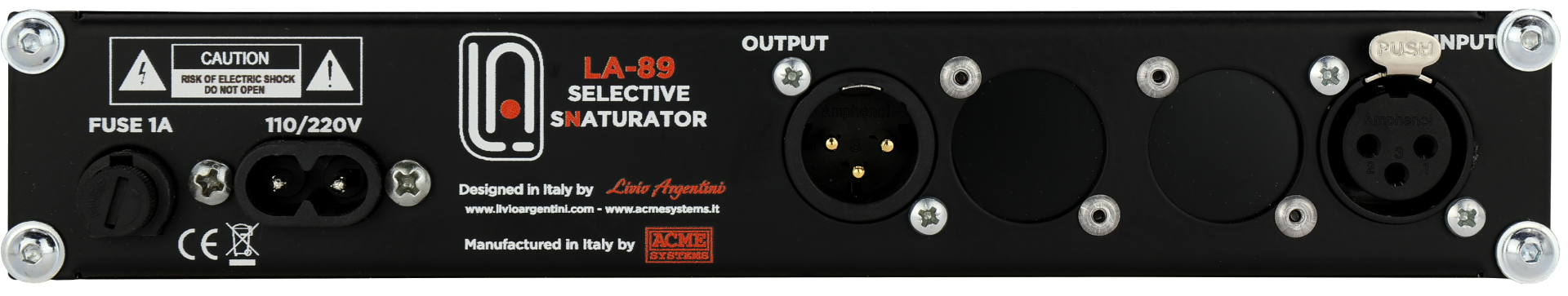

Connectors Rear Panel - 3 poles XLR
Power Supply
Operating Voltage
Power Consumption
Rear Panel AC mains
Rear Panel Main
Switch
Switching. Double filter. Linear stabilizer
110-/220V 50/60 Hz
10 W
IEC C13 16 A connector, AC mains cord with IEC
Schuko
Power On/Off switch
Construction
Dimensions
Weight
1Unit, 19" half rack. Stainless box
W 220 mm / H 44 mm / D 130 mm
1 kg
